Setting Cab Lighting

1. Select Menu button.


   RXA0116493-UN-12MAY11

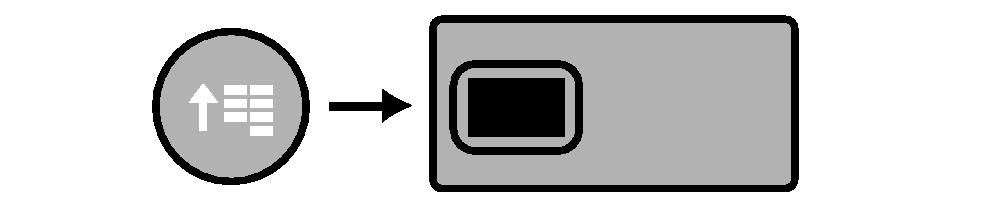

   CommandARM™ Menu Button → Display


   RXA0117797-UN-14JUN11

   Display Main Page — Day Lighting


   RXA0106039-UN-14JUL10

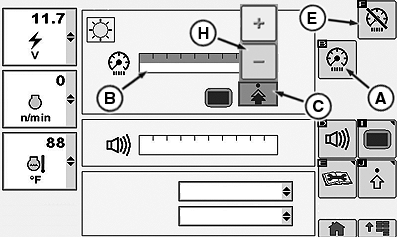

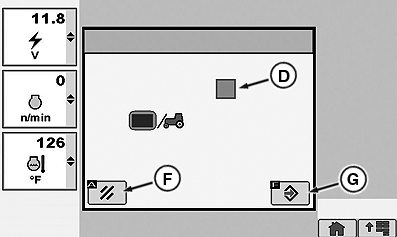

   Backlight Settings Page

   A - Cab Dim Softkey

   B - Cab Dim Bar Graph

   C - Sync With Cab/Stand Alone Toggle Button

   D - Sync With Cab Box

   E - Dim Mode Display Softkey

   F - Cancel

   G - Save/Enter Button

---




2. Select Display.

3. Selecting Cab Dim softkey (A) navigates to Cab Dim bar graph (B).

   NOTE: As bar graph value goes up, cab lighting brightens. As bar graph value decreases, cab lighting dims.

4. Select toggle button (C) to toggle between either stand alone mode or synchronization with cab mode (D).

   NOTE: Selecting Dim Mode softkey (E) darkens CommandCenter™. This feature allows operator to go from field operations when CommandCenter is required to driving on road without CommandCenter when illumination may effect drivers night vision.

5. Make selection between Sync With Cab, Stand Alone mode, then select Save/Enter button (G) or select cancel (F).
