Viewing Basic Diagnostic Readings

RXA0116490-UN-12MAY11

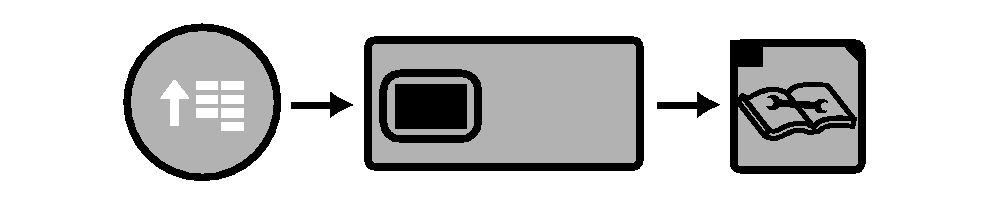

CommandARM™ Menu Button → Display → Diagnostics

Basic display diagnostics such as operating voltage, and CAN bus status can be found on the Diagnostics Readings Page.

This information maybe requested by your John Deere™ dealer to aid diagnostics.

1. Select Menu button.

2. Select Display.

3. Select Diagnostics softkey.

4. System diagnostics are located on Display Settings Readings page.
