Using Performance Monitor Main

RXA0116496-UN-11MAY11

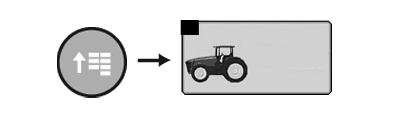

Menu Button → Performance Monitor

RXA0106766-UN-02AUG10

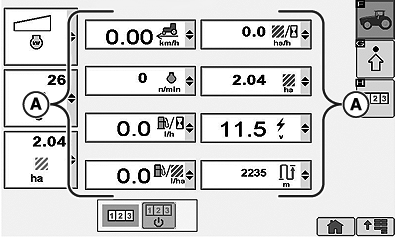

Performance Monitor Main Page

RXA0122124-UN-09NOV11

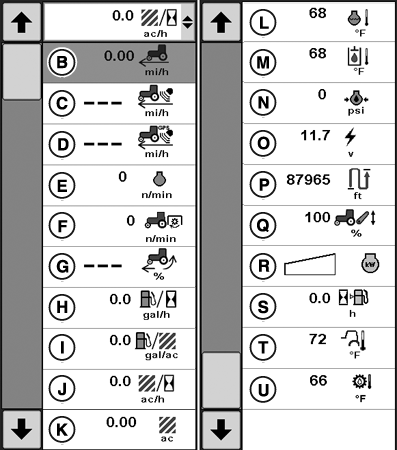

Performance Monitor Settings Options

A - Displayed Performance Monitor Options

B - Ground Speed

C - Radar Speed

D - GPS Speed

E - Engine RPM

F - Rear PTO Speed

G - % Wheel Slip

H - Fuel Consumption Per Hour

I - Fuel Consumption Per Area

J - Area Covered Per Hour

K - Total Area Covered

L - Engine Coolant Temperature

M - Hydraulic Oil Temperature

N - Engine Oil Pressure

O - System Voltage

P - Distance Covered

Q - Hitch Position

R - Not Used

S - Hours of Fuel Remaining

T - Ambient Air Temperature

U - Transmission Oil Temperature

1. Select Menu button.

2. Select Performance Monitor.

3. When Performance Monitor Main page appears, 8 options are displayed (A). Current settings can be monitored at this time.

4. Selecting the drop down box in any of the 8 displayed options allows operator to select any of the remaining performance monitor options.
