Calibrating Dual Beam Radar—Performance Monitor Setting

RXA0116559-UN-20JUN11

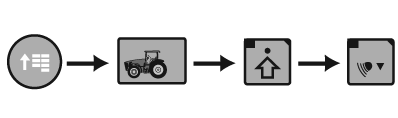

CommandCenter™ Menu Button → Performance Monitor Softkey → Performance Monitor Settings Softkey → Calibrate Radar Softkey

RXA0117185-UN-09JUN11

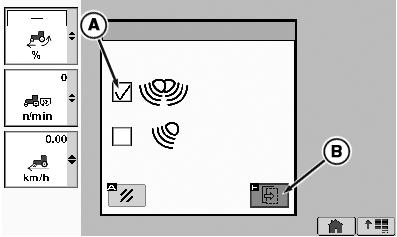

Calibrate Radar Page

A - Dual Beam Radar Check Box

B - Calibration Box

1. Select Menu button.

2. Select Performance Monitor softkey.

3. Select Performance Monitor Settings softkey.

4. At the bottom of the Performance Monitor Settings page, select Calibrate Radar softkey.

5. Place check in Dual Beam Radar check box (A).

6. Select calibration softkey (B).

   Drive an unloaded vehicle at least 3.2 km/h then press the calibration button
