IMPORTANT: Prevent premature axle failure. Carefully follow
drain and fill procedure.
The transmission, hydraulic reservoir and rear axle are all
included in the hydraulic oil system.
Use an oil drain container with a maximum capacity of 293.4
L (77.5 gal), depending on option configuration.
-
Park tractor on level ground and shut engine OFF. Allow oil to cool for few minutes.
-
Attach a hose to hydraulic reservoir drain valve (A) in gudgeon
area at rear of reservoir. Open drain valve to direct oil into a catch
container.
-
NOTE: Remove all three drain plugs to completely drain axle
oil and any debris from each separate axle compartment.

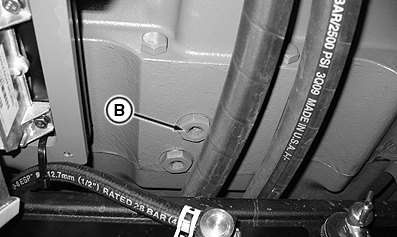

Remove plug (B) from bottom of transmission.
-

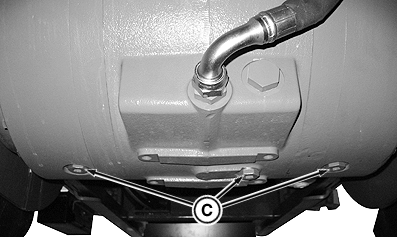

Remove all three front axle drain plugs (C) to drain oil.
-

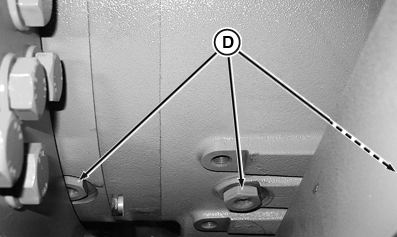

Remove all rear axle drain plugs (D) to drain oil.
-

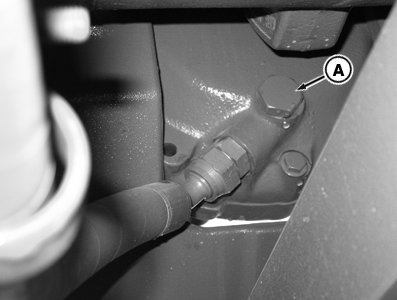

RXA0118414-UN-08JUL11
PTO Dropbox
A - PTO Dropbox Drain Plug
If equipped with PTO, drain dropbox by removing plug (A).
-
Detach reservoir drain hose and close rear drain valve.
-
Reinstall transmission drain plug.
| Item | Measurement | Specification |
|
Transmission Drain Plug | Torque | 70 N·m (52 lb-ft) |
-
Reinstall all removed front and rear axle drain plugs (3 each
axle).
| Item | Measurement | Specification |
|
Front and Rear Axle Drain Plugs | Torque | 70 N·m (52 lb-ft) |
-
If equipped, reinstall PTO dropbox drain plug.
| Item | Measurement | Specification |
|
PTO Dropbox Drain Plug | Torque | 70 N·m (52 lb-ft) |
-
NOTE:

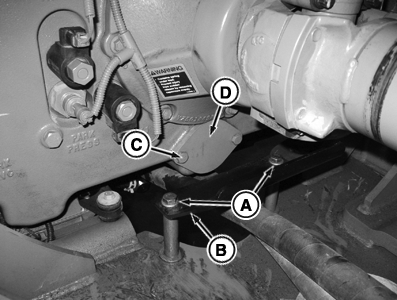

RXA0117930-UN-06JUN11
Powershift Transmission-Rear View

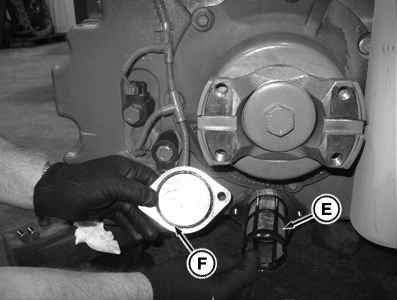

RXA0117932-UN-06JUN11
Powershift Transmission-Suction Screen
A - Cap Screws
B - Hose Shield
C - Screen Cover Cap Screws
D - Cover
E - Suction Screen
F - Cover O-Ring
Remove suction screen cover cap screws (C). and clean screen
with cleaning solvent. Replace O-ring if cracked or brittle.Some parts were removed to show suction screen.
Remove cap screws (A) to remove High Flow hose shield (B), if
equipped.
-
Remove suction screen cover cap screws (C) and remove cover
(D).
-
Remove suction screen (E) and clean with a solvent.
-
Remove and inspect O-ring (F) on suction screen cover.
-
Inspect for debris in suction screen cavity using a flashlight
or magnet.
-
Install new O-ring on cover.
-
Reinstall suction screen and cover. Tighten cap screws to specification.
| Item | Measurement | Specification |
|
Suction Screen Cover Cap Screws | Torque | 55 N·m (40 lb-ft) |
-
Reinstall hose shield, if equipped, and tighten cap screws to
specification.
| Item | Measurement | Specification |
|
Hose Shield Cap Screws | Torque | 140 N·m (105 lb-ft) |
-
Change transmission oil filter. (See Replacing Transmission
Oil Filter—18-Speed Powershift Transmission in this Section.)
-
Change hydraulic oil filters. (See Replacing Hydraulic Oil Filters
in this Section.)
-
For 9510R and 9560R Tractors replace
axle filter. (See Replace Axle Filter—”For 9510R and 9560R
Tractors Only” in this Section.
-
NOTE: Fill transmission with 37.9 L. (10.0 gal.) of John Deere
HY-GARD® or JDM J20C oil to ensure transmission lube pump startup
is wet with oil. Remaining refill oil volume should be added to the
hydraulic reservoir.

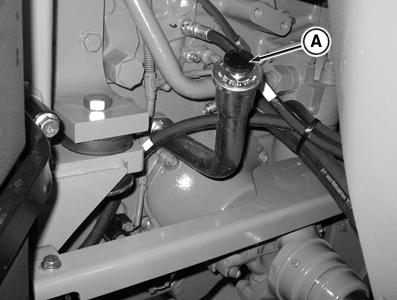

RXA0115627-UN-10MAY11

RXA0113200-UN-06MAY11
Front Axle Plug-Single Reduction Axle Only

RXA0113408-UN-25JAN11
Rear Axle Plug-Single Reduction Axle Only
A - Fill Tube
B - Front Axle Bleed Plug
C - Rear Axle Bleed Plug
Prefill transmission with 37.9 L. (10.0
gal.) of John Deere HY-GARD® or JDM
J20C oil at transmission fill tube (A).
-
NOTE: Tractors with Double Reduction
Axles are vented when oil is circulated to front and rear axles and
do not need to perform step 23. Go to step 24 entitled: Perform Following
Steps For All Tractors:
Tractors with Single Reduction Axles, perform
steps 23, then step 24 “Perform Following Steps For All Tractors”
Remove front axle plug (B) and rear axle plug (C) to bleed air
from each axle.
-

RXA0117338-UN-18MAY11
Right-Hand Cab Panel

RXA0117325-UN-18MAY11
Hydraulic Reservoir Sight Gauge
A - Retaining Screws
B - Cab Side Panel
C - Reservoir Fill Cap
Perform Following Steps For All Tractors:
NOTE: The hydraulic reservoir will not hold total oil volume for the system until engine is started and oil
is circulated to transmission and axles, resulting in a lower reservoir
oil level. The reservoir will need to be filled to the correct level.
NOTE: Clean the hydraulic oil system vent filter while the side
panel is removed. See CLEAN HYDRAULIC OIL SYSTEM VENT FILTER in this
Section.
Remove right-hand cab panel retaining screws (A) and remove
right-hand cab side panel (B).
-
Remove reservoir fill cap (C) and add remaining hydraulic oil
volume to the reservoir.
|
18-Speed Powershift Transmission/Hydraulic
Reservoir/Axle System Capacities (with Filter)
|
| |
|
Transmission/Hydraulic Reservoir/Axle System: (Reference for topping off the system.)
|
| |
|
Hydraulic Reservoir Volume Reference Mark:
|
|
.. Full Hot Mark.............. 124.2 L (32.8 gal)
|
|
.. Full Cold Mark.............. 101.9 L (26.9 gal)
|
|
.. Min Cold Mark.............. 90.6 L (23.9 gal)
|
|
.. Do Not Start Mark.............. 48 L (12.7 gal)
|
|
.. Oil Capacity Between ”Min Cold” and “Full
Cold” Marks.............. 11.4 L (3 gal)
|
| |
|
Transmission Fill Volume:
|
|
.. Powershift Transmission .............. 37.9 L (10.0 gal)
|
|
Powershift Transmission/Hydraulic Reservoir/Axles Fill Volume1:
|
|
.. Powershift Transmission, SR Axles, Standard Flow .............. 282.1 L (74.5 gal)
|
|
.. Powershift Transmission, SR Axles, High Flow .............. 293.4
L (77.5 gal)
|
|
.. Powershift Transmission, DR Axles, Standard Flow .............. 217.7 L (57.5 gal)
|
|
.. Powershift Transmission, DR Axles, High Flow .............. 229.1
L (60.5 gal)
|
|
See Specifications Section for Additional
Specifications
|
-
NOTE: Do not reinstall right-hand cab side panel until engine
is started and oil circulated throughout the hydraulic system and
oil level in sight gauge has stabilized.
Reinstall and tighten hydraulic reservoir fill cap.
-

RXA0117336-UN-18MAY11
A - “Full Hot” Mark
B - “Full Cold” Mark
C - “Min Cold” Mark
D - “Do Not Start” Mark
OIL LEVEL CHECK PROCEDURE:
IMPORTANT: Poor shift quality and/or transmission damage may
occur if the HY-GARD or JDM J20C specifications are not followed.
To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C
specifications must be used.
Transmission lever should be in PARK.
-
For Single Reduction Axle Tractors: perform
steps 28 and 29. Start and set engine speed at 1200 rpm for approximately 5 minutes or until oil is circulated and
appears at both axle ports.
For Double Reduction Axle Tractors: Go to step 30.
-
Stop engine and install both axle plugs. Go to step 30.
-
NOTE: DO NOT step on brake pedal during this segment of the
procedure to avoid additional oil flow to the axles and resulting
in an inaccurate oil level check.
Perform For All Tractors:
Start engine and set engine speed at 1200
rpm for 5 minutes.
-
Shut engine OFF and wait 5 minutes for oil level to stabilize.
-
Add more of remaining oil volume to hydraulic reservoir if oil
level drops to Do Not Start (D) mark. Then
resume operation of tractor at 1200 rpm per the oil level checking
procedure.
-
Check to ensure transmission/hydraulic reservoir/axle oil level
is visible between “Min Cold” (C) and “Full Cold”
(B) marks in the sight gauge.
NOTE: Volume capacity between “Min Cold” mark (C)
and “Full Cold” mark (B) is 11.4 L (3 gal).
Estimate volume of oil that needs to be removed or added.
If oil level is visible between Min Cold (C) and Full Cold (B), tractor can be
used for normal operation.
-
Identify oil volume required in reservoir until it reaches marks Min Cold (C) or Full Cold (B). If oil level is below (C) in sight gauge, add HY-GARD Hydraulic
Oil through reservoir fill cap for 1500 Hour service procedure.
For daily checks or add oil if sight gauge is below Min Cold (C) mark, but above Do Not Start (D) mark, add required volume of HY-GARD Transmission-Hydraulic
Oil using fill tube, at rear of transmission.
If oil volume required is below Do Not Start mark, add required oil through hydraulic
reservoir fill cap, under right-hand cab side panel.
NOTE: An exception is implements with large hydraulic cylinders
that can remove large volumes of oil from the tractor's hydraulic
system. Oil level should be near bottom mark of sight gage with implement
positioned to contain maximum amount of oil.
NOTE: Oil level in reservoir will rise as temperature increases.
Oil level in the reservoir will fluctuate depending upon the
volume of oil exchanged with an attached implement.
If low oil level results in pressure drop, a STOP engine light
will come on.
-
The oil level checking procedure should be repeated and oil
level adjusted until oil level stabilizes between Min Cold (C) and Full Cold (B) marks.
-
If oil level is above Full Cold (B)
mark, remove enough oil to bring it down to Full
Cold mark level.
Recommended method to remove oil is use drain valve at rear
and under the hydraulic reservoir, in hinge area. A hose can be attached
to drain valve to direct oil into a container.
-
Reinstall right-hand cab side panel and tighten using retaining
screws.
