Hydraulic Option Configuration
RXA0126922-UN-20JUN12

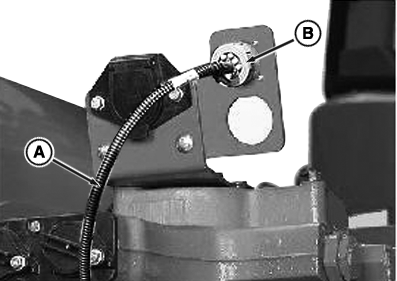

9-Pin Connector
A - Implement Single Lever Control Jumper Harness
B - 9-Pin Connector
If tractor is equipped with 9-pin connector (B), install implement single lever harness (A).This allows optional hydraulic functions. See table below:
|
Hydraulic Function |
Jumper Harness Part Number* |
|
Normal SCV Operation Mode |
No jumper harness required |
|
TouchSet™ Depth Control |
Implement Dependent |
|
SCV Controlled Hitch NOTE: Jumper harness disables hitch valve and allows hitch valve to be operated with an SCV. |
AA39951 |
|
AutoLoad™ |
RE148146 |
|
AccuDepth™ |
Implement Dependent |
|
* Part numbers may vary see parts system additions and subtractions. |
|
|
NOTE: Additional parts may be required. |
|
|
RW29387,00001BF-19-20120622 |
