Programmable Lights

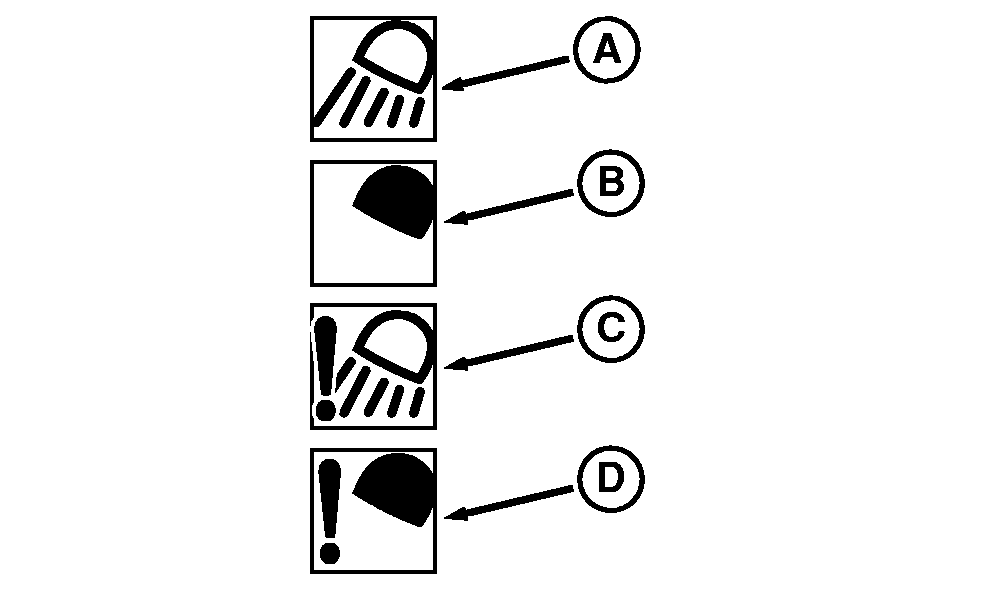

Programmable lighting may appear in four states as indicted below;

RXA0101485-UN-02APR09

A - Light Programmed ON

B - Light Programmed OFF

C - Light Programmed ON, Faulted

D - Light Programmed OFF, Faulted

While operating in the field pressing field lights 1 (A) or field lights 2 (B) will display a quick view (3 seconds) of the appropriate lights programmed on before defaulting back to previous page displayed on CommandCenter™. Road lights can also be toggled by using the switch (C) on the Cab Switch Module. The hood light indicator (D), indicates if the hood lights are ON or OFF.

RXA0108222-UN-30JUN10

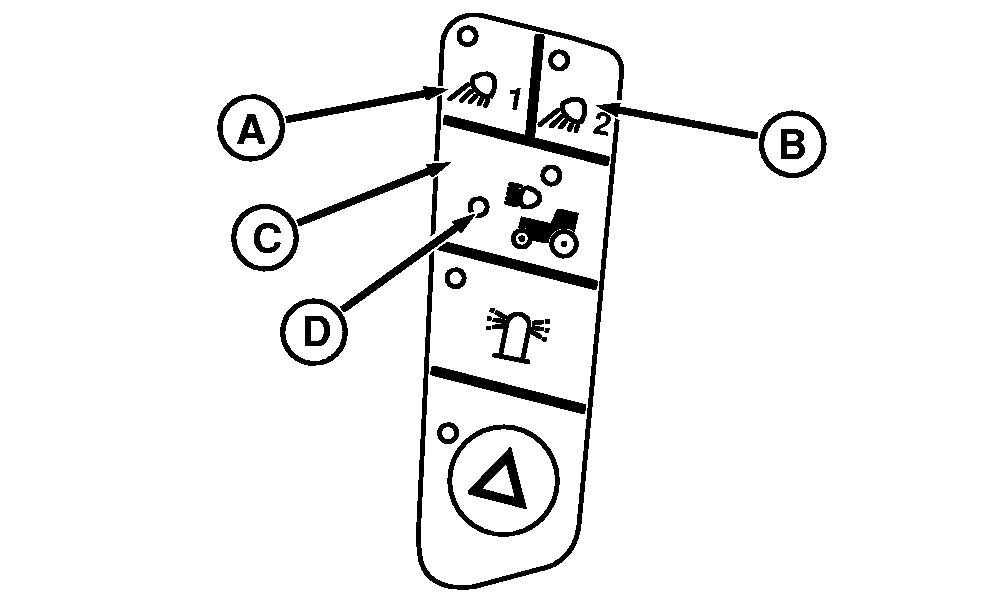

CommandARM™ Controls Field Lights Buttons

A - Field Lights 1

B - Field Lights 2

C - Road Lights

D - Hood Light Indicator (Cab Switch Module)
