Operating Hazard Lights and Extremity Transport Lights

RXA0086584-UN-09FEB06

Use Safety Lights and Devices Warning

RXA0098436-UN-07JUL08

Hazard Light Button

RXA0099877-UN-02DEC08

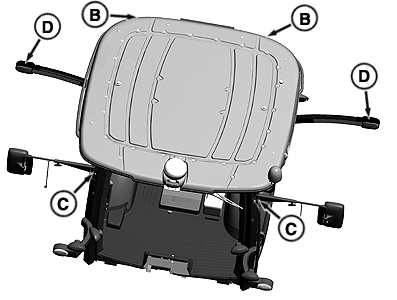

Cab Amber Lights

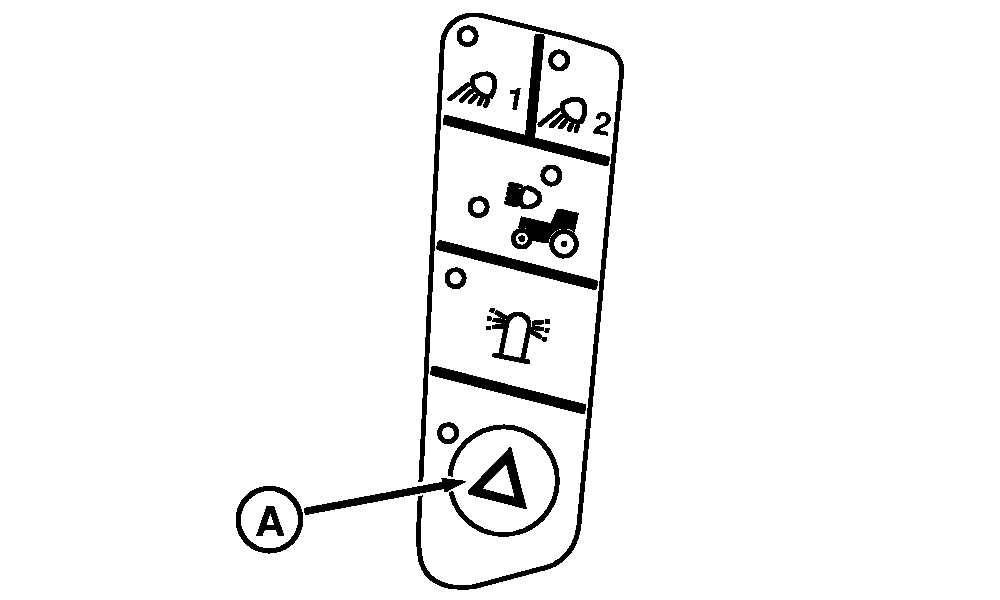

A - Hazard Light Switch

B - Rear Center Lights Equipped With Amber Bulb

C - Front Center Lights Equipped With Amber Bulb

D - Extremity Transport Lights

CAUTION: To prevent possible personal injury, always operate flashing lights when traveling on a highway or public roads, except where prohibited by law.

Extremity Transport Lights (D) are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity Transport Lights alert other vehicles of your extended width. Use flashing warning lights and turn signals day and night. Follow local regulations for equipment lighting and marking.

Push Hazard Switch (A) to activate flashing amber hazard lights (B, C, and D).

IMPORTANT: To avoid damage, extremity lights may be retracted when parking tractor in storage building.

Extremity Transport Lights operate with Hazard Light Switch ”ON”.

RXA0114422-UN-09MAY11

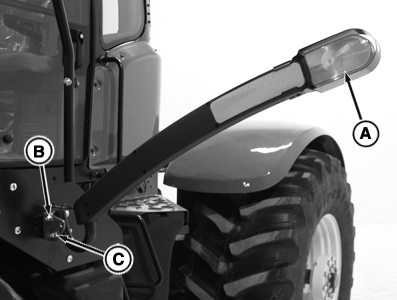

Left-Hand Extremity Light Bracket

RXA0114427-UN-09MAY11

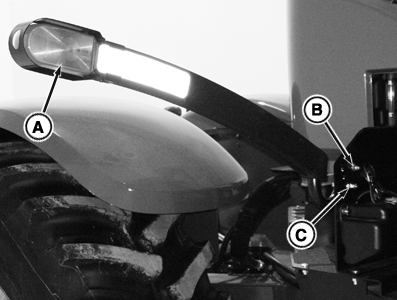

Right-Hand Extremity Light Bracket

A - Extremity Light

B - Upper Bracket Cap Screw

C - Lower Bracket Cap Screw

Loosen upper extremity light bracket cap screw (B) and remove lower cap screw (C) to adjust extremity arm.

Place lower bracket cap screw (C) in appropriate hole for desired extremity arm width.

Tighten all bracket cap screws to secure extremity arms.
