Operating Rotary Beacon Light (If Equipped)

RXA0098435
RXA0098435-UN-07JUL08

RXA0099172
RXA0099172-UN-25SEP08

RXA0100494
RXA0100494-UN-11FEB09

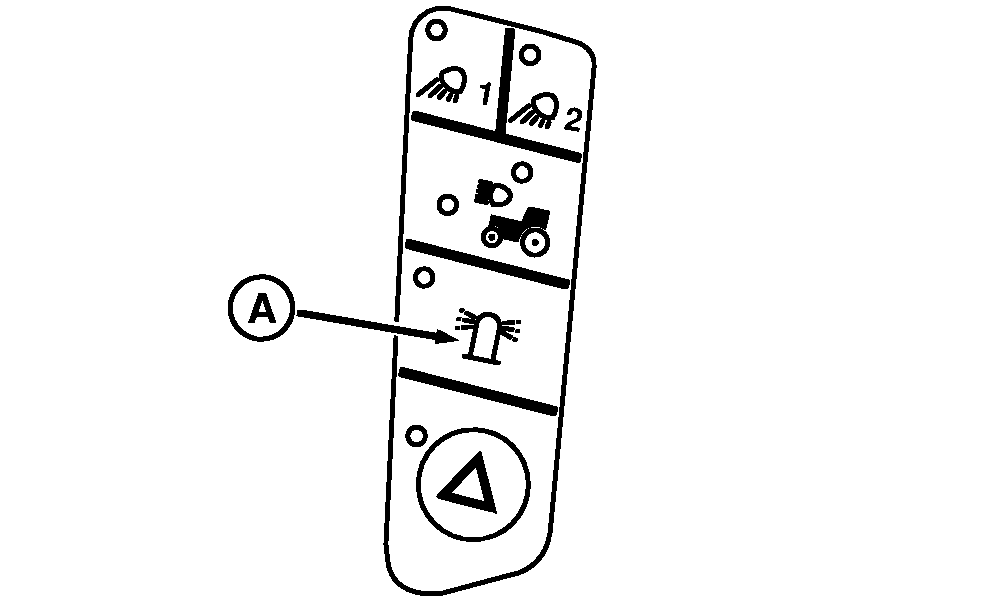

A - Rotary Beacon Switch

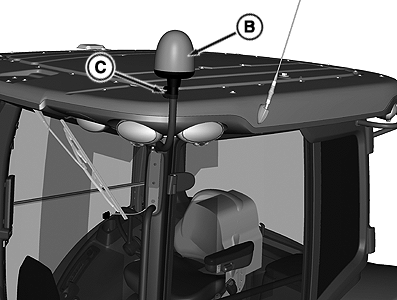

B - Rotary Beacon Light

C - Nut

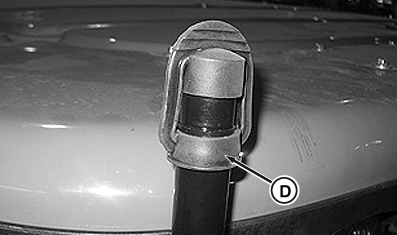

D - Protective Cap

Push Rotary Beacon Switch (A) to activate the Rotary Beacon Light (B).

When Rotary Beacon Light is not being used:

  • Loosen nut (C) and remove light assembly.
  • Install rubber protective cap (D) on connector.

RW29387,000030B-19-20100608
