Using Instructional Seat

RXA0118792-UN-14JUL11

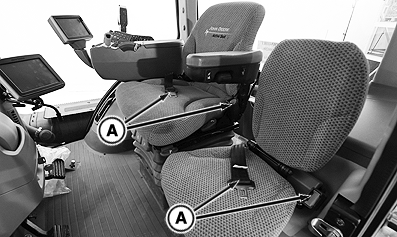

Instructional Seat

RXA0118796-UN-14JUL11

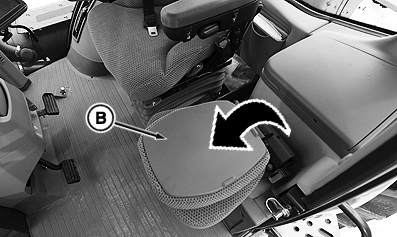

Instructional Seat Converted To Writing Surface

RXA0118801-UN-14JUL11

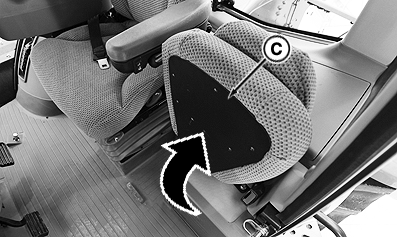

Instructional Seat Folded Up For Easier Egress

A - Seat Belt

B - Writing Surface

C - Flip Up Seat

CAUTION: This instructional seat has been provided only for training operators or diagnosing machine problems. Keep all other riders off the tractor and equipment. Always wear seat belts (A).

Instructional seat back tilts forward to be used as a writing surface (B). Flip up seat (C) tilts up allowing easier entrance and egress.
