Heated Leather Seat (If Equipped)

RXA0122253-UN-17NOV11

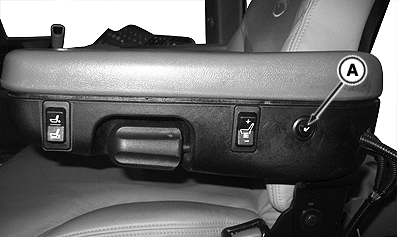

LED Momentary Switch

A - LED Heated Seat Switch

NOTE: Heater will automatically turn off after 1 hour of use and can be turned on again manually, as needed.

The heated leather seat provides three heat settings for increased comfort during cold days. Heat intensity is controlled by a LED momentary switch (A) located in the left armrest. The four settings are: HIGH, MEDIUM, LOW, and OFF. When tractor is shut off, seat heater also turns off or after one hour of use switch will automatically turn off. To start or restart seat heater:

• Press switch one time for HIGH (Red LED ON).
• Press switch two times for MEDIUM (Amber LED ON).
• Press switch three times for LOW (Yellow LED ON).
• Press switch four times for OFF (LED OFF).

LED Diagnostics Blink Pattern

• LED On longer than Off—Heating wire failure.

• LED Off longer than On—Temperature sensor failure.

Clean seat with mild soap and warm water. Use automotive leather conditioner for conditioning. Conditioning should be done every 6 months if tractor is stored outside. If stored inside conditioning interval can be extended to 12 months.
