Operating Front Windshield Wiper and Washer
RXA0098437-UN-22DEC08
RXA0106299-UN-03FEB10
Windshield Washer Reservoir

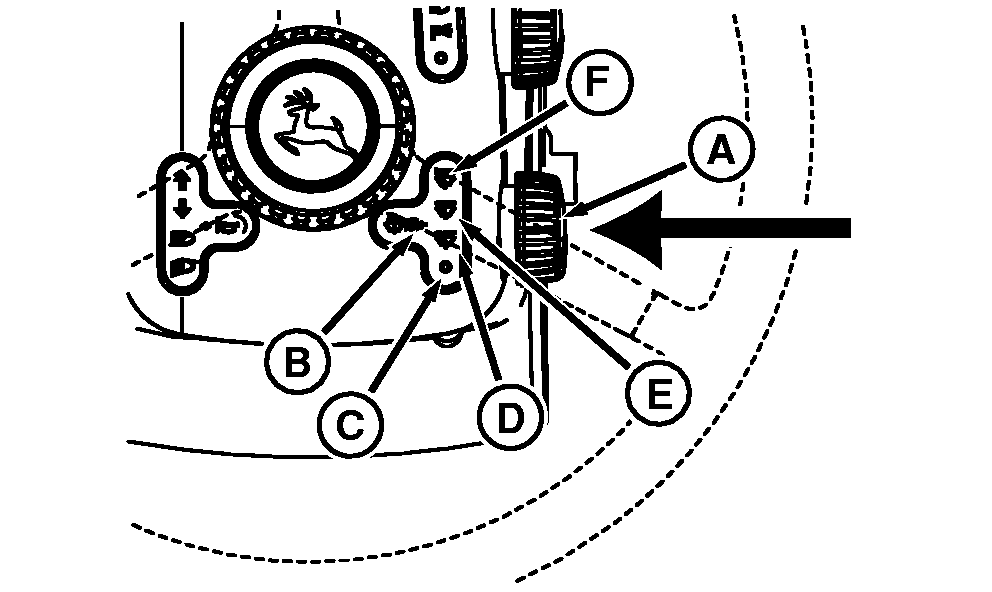

A - Windshield Wiper/Washer Knob
B - Washer Icon
C - Off
D - Intermittent Speed
E - Slow Speed
F - Fast Speed
G - Windshield Wiper Reservoir
Wiper/washer knob (A) has four positions:- OFF
- Intermittent Operation
- Slow Speed
- Fast Speed
Push knob in to operate front windshield washer.
Reservoir (G) is located on right side of cab, near the engine air filter housing.
Fill reservoir with non-freezing windshield washer fluid.
|
RW29387,0000314-19-20100608 |
