Mounting StarFire™ Receiver

CAUTION:

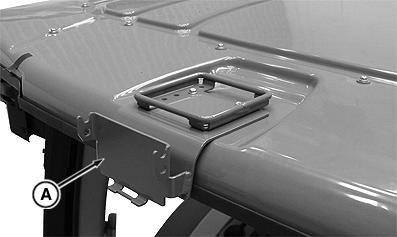

RXA0101103-UN-19MAR09

Stacked Configuration

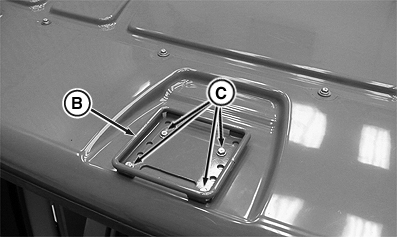

RXA0101101-UN-19MAR09

Cap Screws And StarFire™ Receiver Bottom Attaching Shroud Bracket

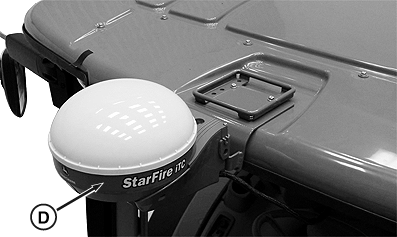

RXA0101105-UN-19MAR09

StarFire™ Receiver With Rear Attaching Shroud

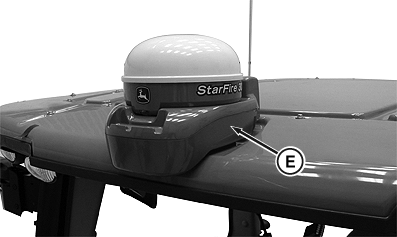

RXA0101107-UN-19MAR09

StarFire™ Receiver With Bottom Attaching Shroud Installed

A - StarFire™ Receiver Bracket (Rear Attaching Shroud)

B - StarFire™ Receiver Bracket (Bottom Attaching Shroud)

C - Cap Screws

D - StarFire™ Receiver With Rear Attaching Shroud

E - StarFire™ Receiver With Bottom Attaching Shroud

Handle global positioning receivers and brackets safely. Falling while installing or removing a global positioning receiver can cause serious injury. Use a ladder or platform to easily reach a mounting location.

Use sturdy and secure footholds and hand holds. Do not install or remove the receiver in wet or icy conditions.

StarFire™ receiver brackets are installed in a stacked configuration on top of tractor roof. Bracket (A) is installed below bracket (B) with four cap screws (C).

Bracket (A) is compatible with StarFire™ receivers equipped with rear attaching shrouds (D).

NOTE: Bracket (A) and bracket (B) may remain in stacked configuration.

Bracket (B) is only compatible with StarFire™ receivers equipped with bottom attaching shrouds (E).

NOTE: Bracket (A) must be removed when using bottom attaching shrouds (E).

Remove four cap screws (C), remove both brackets, then re-install bracket (B) using original four cap screws.

NOTE: Refer to your John Deere™ dealer or to StarFire™ receiver installation instructions for further compatibility.

See your John Deere™ dealer for compatible adapter harnesses.
