Using Electric Mirror (If Equipped)

RXA0100805-UN-25FEB09

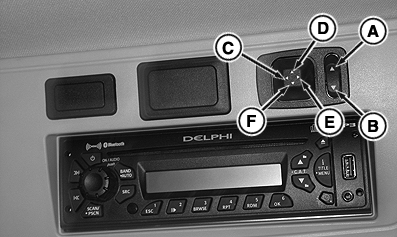

Rear View Mirror Switch

RXA0100485-UN-06MAR09

Electrical Rear View Mirror (Right-Hand Side Shown)

A - Selection Switch—Right Mirror

B - Selection Switch—Left Mirror

C - Angle Left

D - Tilt Up

E - Angle Right

F - Tilt Down

G - Standard Mirror

1. Push selection switch (A) for right mirror or switch (B) to control left mirror.

2. Push adjustment switch (C) to angle mirror left or switch (E) to angle mirror right.

3. Push adjustment switch (D) to tilt up or switch (F) to tilt mirror down.
