Using Electric Telescoping Heated Mirror (If Equipped)

RXA0127173-UN-13JUL12

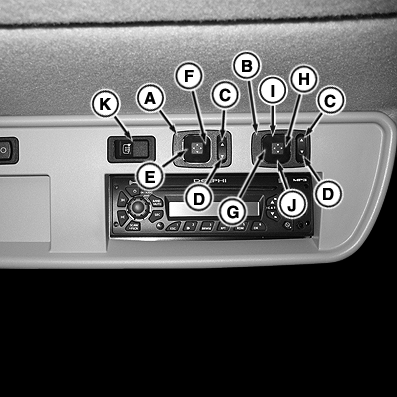

Left & Right Mirror Adjustment Switches

RXA0118176-UN-17JUN11

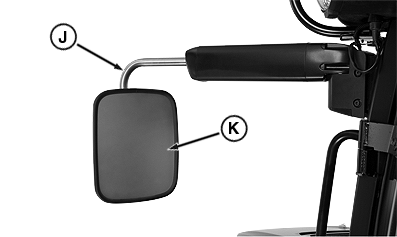

Electric Telescoping Rear View Mirror (Left-Hand Mirror Shown)

A - Telescopic Arm Switch

B - Mirror Adjustment Switch

C - Left Mirror Rocker Selection Switch

D - Right Mirror Rocker Selection Switch

E - Telescoping Arm Extend

F - Telescoping Arm Retract

G - Mirror Angle Outward

H - Mirror Angle Inward

I - Mirror Tilt Up

J - Mirror Tilt Down

K - Heated Mirrors Switch

L - Telescoping Arm

M - Mirror

To Extend or Retract Telescoping Arms:

1. Using telescopic arm switch (A), push rocker switch up (C) for left mirror selection or down (D) for right mirror selection,

2. Push adjustment switch (E) to extend telescopic arm. Press adjustment switch (F) to retract telescopic arm.

For Mirror Adjustment:

1. Using mirror adjustment switch (B), push rocker switch up (C) for left mirror selection or down (D) for right mirror selection, push adjustment switch (G) to adjust mirror angle outward. Push adjustment switch (H) to adjust mirror angle inward.

2. Push adjustment switch (I) to tilt mirror up, push adjustment switch (J) to tilt mirror down.

3. NOTE: The heated mirror switch (K) lights up when heated mirror is activated. The heated mirror function is not on a timer and has to be manually turned off. Heated mirror power is off when key switch is turned off, to prevent loss of battery power.

   Press Switch (K) to activate heated mirrors.
