Adjusting Hitch Upper Limit

1. Press upper limit short cut button (A).

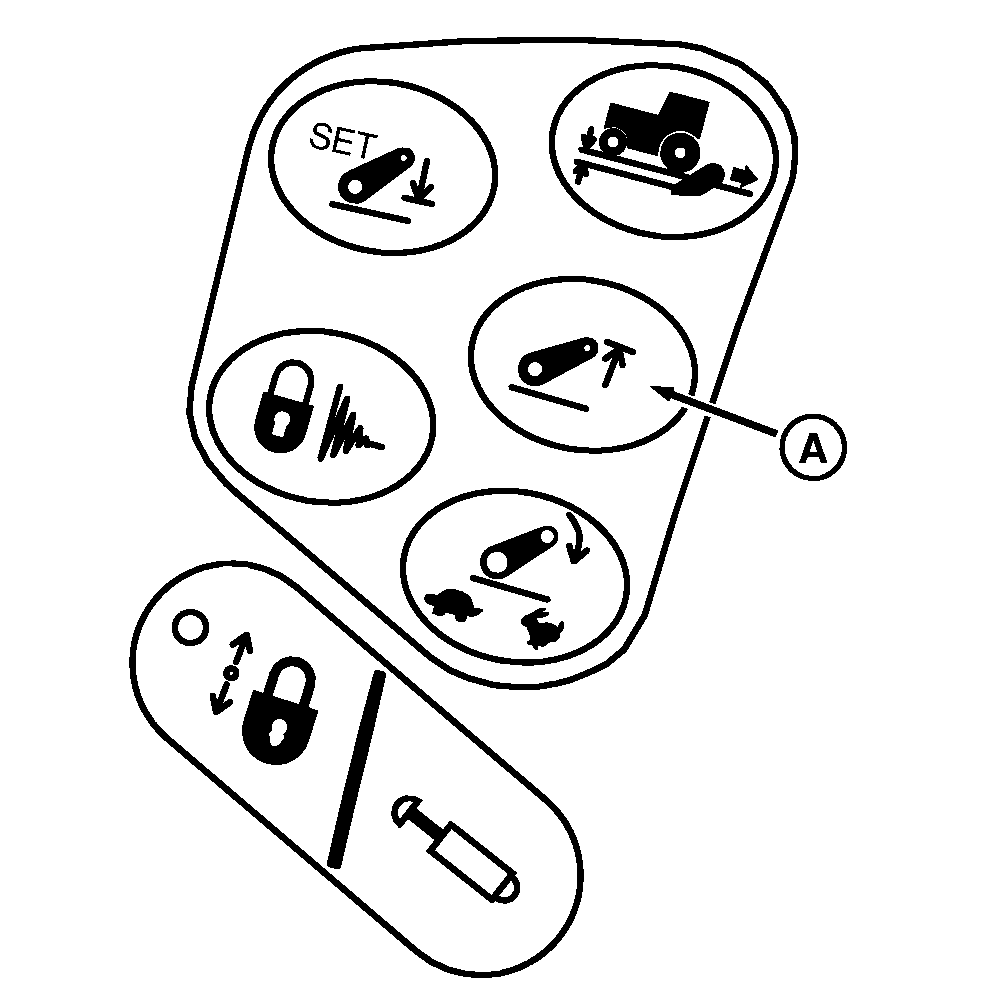

   RXA0099158-UN-25SEP08

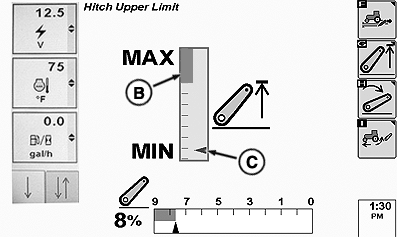

   RXA0101380-UN-07APR09

   A - Hitch Upper Limit Short Cut Button

   B - Upper Limit Setting Indicator

   C - Current Hitch Position Indicator Mark

---




2. Rotate thumb wheel and observe upper limit setting indicator (B). Current hitch position represented by indicator mark (C).

   NOTE: Changes to upper limit setting take place immediately.

3. Turn thumb wheel to adjust upper limit setting.
