Using Float Operation

Implements that fully rest on gauge wheels to control depth, require that the hitch float to follow ground contour.

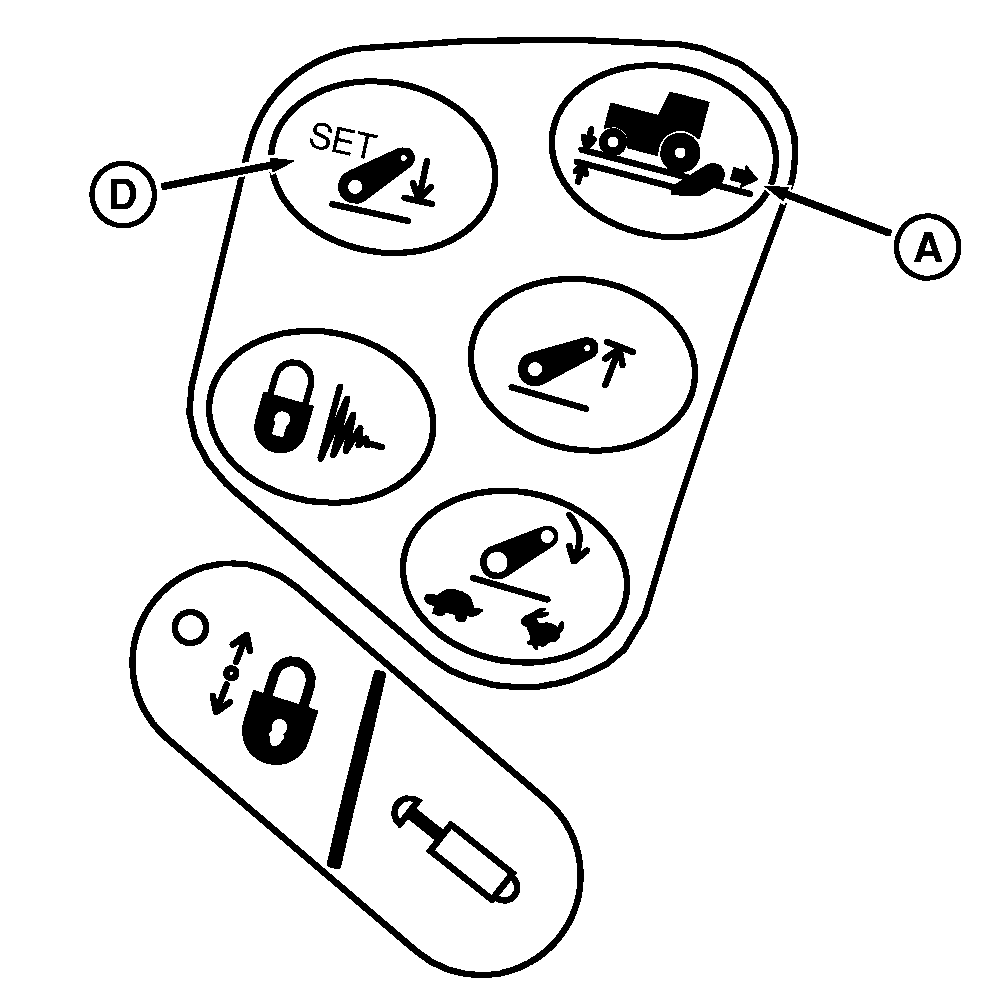

RXA0102832
RXA0102832-UN-05JUN09

Hitch Load Depth

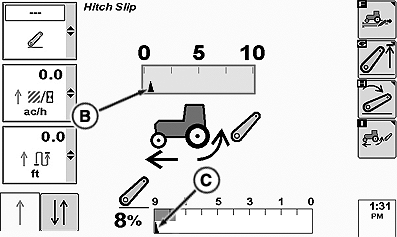

RXA0101733
RXA0101733-UN-07APR09

Hitch Load Depth

A - Load/Depth Short Cut Button

B - Load/Depth Setting Indicator

C - Commanded Depth Indicator

D - Hitch Lower Limit Short Cut Button

  1. Press Load/Depth short cut button (A).

  2. Turn thumb wheel to set load/depth setting indicator (B) to a minimum for position control until indicator.

  3. Hold hitch lever forward until commanded depth indictor (C) is full down to 9 on the bar graph.

  4. Press hitch lower limit button (D) to save full down as stored depth setting.

  5. Lift links can be adjusted for lateral float. See changing Lateral Float in this section.

RW29387,000034C-19-20091203
