Rear Hitch Raise/Lower Switches — External

RXA0118325-UN-22JUN11

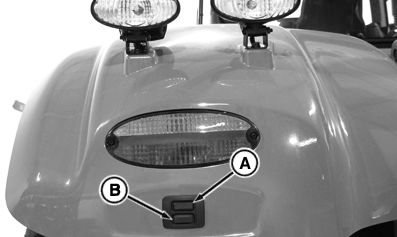

Rear Hitch External Raise/Lower Switches

RXA0118326-UN-22JUN11

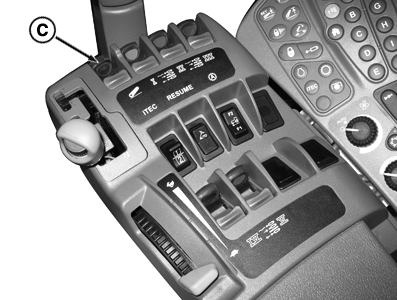

CommandArm™ Hitch Switch

A - Hitch Raise Switch

B - Hitch Lower Switch

C - CommandArm Hitch Raise/Lower Switch

Rear hitch external raise/lower switches are located on left rear fender.

NOTE: Hitch moves at slower speed when using external raise/lower switches.

Push on top external switch (A) to raise hitch.

Push on bottom external switch (B) to lower hitch.

NOTE: CommandArm hitch lever (C) cannot be used simultaneously with external raise/lower switches.
