Adjusting Front Grille Lights

RXA0118873-UN-14JUL11

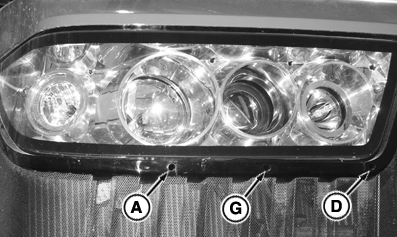

Light Grille-Front View

RXA0118874-UN-14JUL11

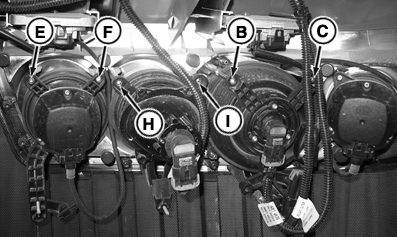

Light Adjustments In Grille-Rear View

A - High Beam Lowering Adjustment Screw

B - High Beam Tilt Up And In Adjustment Screw

C - High Beam Tilt Up And Out Adjustment Screw

D - Center Spot Lowering Adjustment Screw

E - Center Spot Tilt Up And In Adjustment Screw

F - Center Spot Tilt Up And Out Adjustment Screw

G - Low Beam Lowering Adjustment Screw

H - Low Beam Tilt Up And In Adjustment Screw

I - Low Beam Tilt Up And Out Adjustment Screw

NOTE: Adjusting front grille lights requires a T20 torx driver.

To adjust front grille lights, follow the required procedure.

1. Adjust High Beam Headlights

   • To lower the high beam aim, turn high beam adjustment screw (A) counterclockwise.
   • To raise and tilt in high beam, turn high beam adjustment screw (B) counterclockwise.
   • To raise and tilt out high beam, turn high beam adjustment screw (C) counterclockwise.



2. Adjust Center Spot Light

   • To lower center spot light, turn center spot adjustment screw (D) counterclockwise.
   • To raise and tilt in center spot beam, turn center spot beam adjustment screw (E) counterclockwise.
   • To raise and tilt out center spot beam, turn center spot beam adjustment screw (F) counterclockwise.



3. Adjust Low Beam Headlights

   • To lower low beam headlights aim, turn low beam adjustment screw (G) counterclockwise.
   • To raise and tilt in low beam headlights, turn low beam adjustment screw (H) counterclockwise.
   • To raise and tilt out low beam headlights, turn low beam adjustment screw (I) counterclockwise.



4. Repeat light adjustments for opposite side of the grille.
