Replacing Front, Side And Rear Cab Roof Bulbs

1. Push down light fixture tab (A).

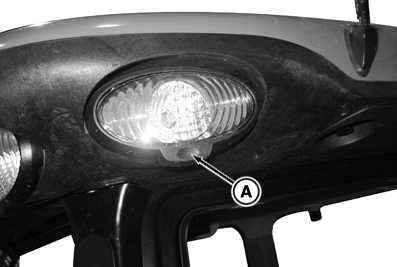

   RXA0099133-UN-19SEP08

   Push Down On Tab To Remove Fixture

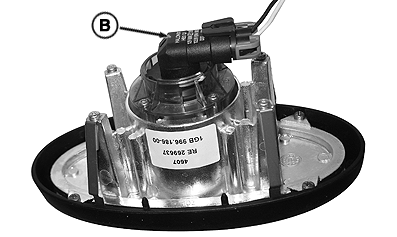

   RXA0099135-UN-19SEP08

   Remove Bulb

   A - Light Fixture Tab

   B - Bulb

---




2. Turn bulb (B) 1/4 turn to remove bulb from fixture.

3. Insert bulb into fixture, then turn bulb 1/4 turn to lock in place.

4. Insert fixture into cab roof until it seats and tab is snapped into place.
