Replacing Brake or Turn Signal Light Bulb

RXA0108567
RXA0108567-UN-19JUL10

Tail Light

RXA0108569
RXA0108569-UN-19JUL10

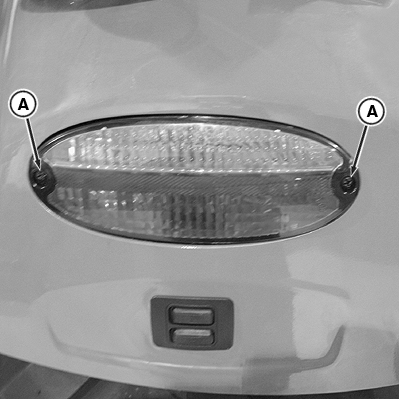

Remove Lens

RXA0108571
RXA0108571-UN-19JUL10

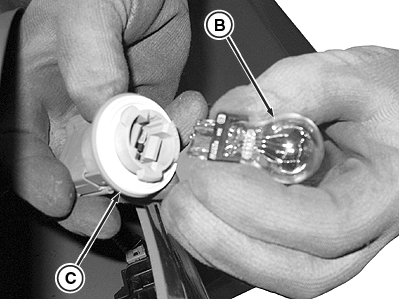

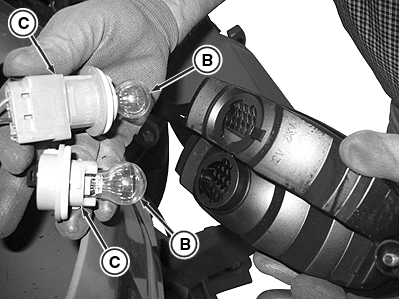

Remove Light Bulb

A - Screws

B - Light Bulb

C - Wiring Harness

  1. Remove screws (A) and lens.

  2. Turn wiring harness (C) counterclockwise 1/4 turn and pull out to remove.

  3. Pull light bulb (B) out of wiring harness (C).

  4. Install new light bulb.

  5. Replace wiring harness (C) by turning clockwise 1/4 turn.

  6. Replace lens and screws.
