Replacing Dome Light Bulb

RXA0108573-UN-19JUL10

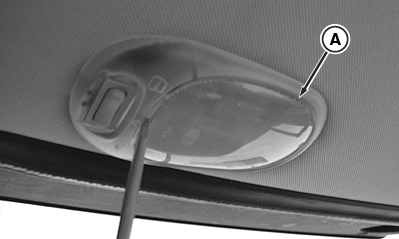

Remove Cover

RXA0099128-UN-19SEP08

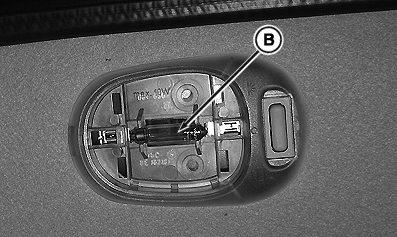

Remove And Replace Bulb

A - Cover

B - Light Bulb

1. Remove lens cover (A) with screwdriver.

2. To remove light bulb (B), grasp bulb and pull straight down.

3. Gently push new bulb into fixture until it seats.

4. Replace cover.
