Replacing Map Light

1.
   RXA0108575-UN-09JUL10


   RXA0108577-UN-12JUL10


   RXA0108579-UN-12JUL10


   RXA0108602-UN-09JUL10

   A - Cover

   B - Edges of Cover

   C - Front Clips

   D - Rear Clips

   E - Map Light Connector

   F - Courtesy Light Connector

   G - Switch Connector

   H - Courtesy Bulb

   I - Map Light Bulb

   J - Courtesy Light Tab

   Carefully insert fingers under edges (B) of cover, then pull cover (A) down to expose bulbs.

---




2. Pull down on cover front disconnecting front clip (C).

3. Remove rear clips (D) by sliding cover toward cab center.

4. Disconnect switch connector (G), Courtesy Light connector (F), and Map light connector (E). Cover (A) with bulb assembly is now free from cab roof.

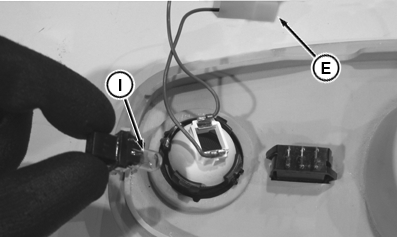

5. Remove Map light bulb (I) from retaining ring.

6. Install new bulb in retaining ring.

7. Reconnect connectors (E and F), Switch connector (G), then install rear clips (D) before swinging cover front up and snapping front clip (C) into place.
