Replacing Extremity Warning Light Bulb (if Equipped)

RXA0108609
RXA0108609-UN-29JUL10

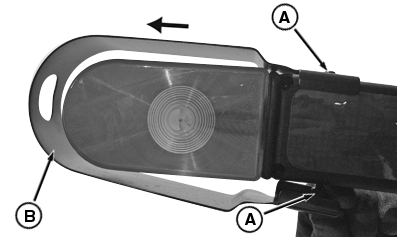

Extremity Warning Light

RXA0108611
RXA0108611-UN-29JUL10

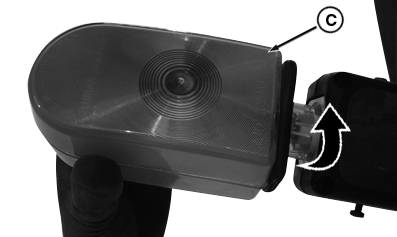

Remove Lens Cover

RXA0108613
RXA0108613-UN-29JUL10

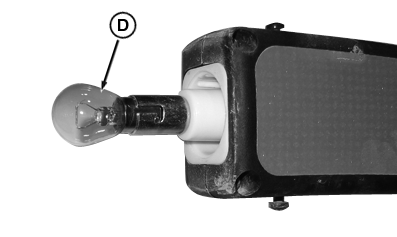

Remove Bulb

A - Screws

B - Shield

C - Lens Cover

D - Light Bulb


  1. Loosen screws (A).

  2. Slide shield away from lens cover to remove.

  3. Turn lens cover (B) counterclockwise to remove cover.

  4. Turn Light Bulb (C) counterclockwise to remove bulb

  5. Install new bulb in reverse order of removal

RW29387,00003D3-19-20110902
