Raising and Closing the Hood

RXA0113740-UN-20AUG11

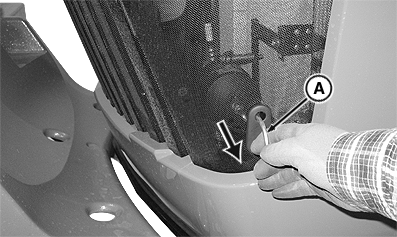

Hood Release Handle

RXA0113742-UN-20AUG11

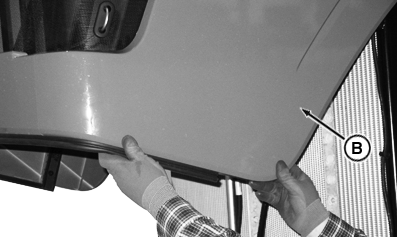

Raise Hood

RXA0113744-UN-20AUG11

A - Hood Release Handle

B - Hood

C - Retaining Bracket

CAUTION: Shut off engine before raising the hood.

Pull hood release handle (A) and lift hood (B) to raise.

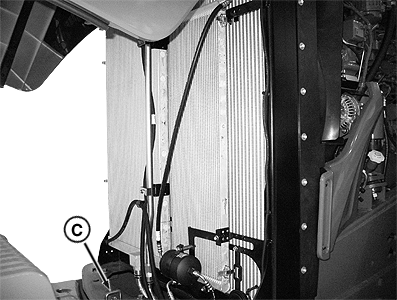

Carefully pull down hood and close latch on retaining bracket (C).
