Using Seven-Terminal Outlet

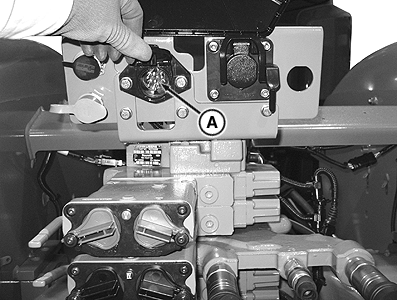

RXA0106484-UN-23FEB10

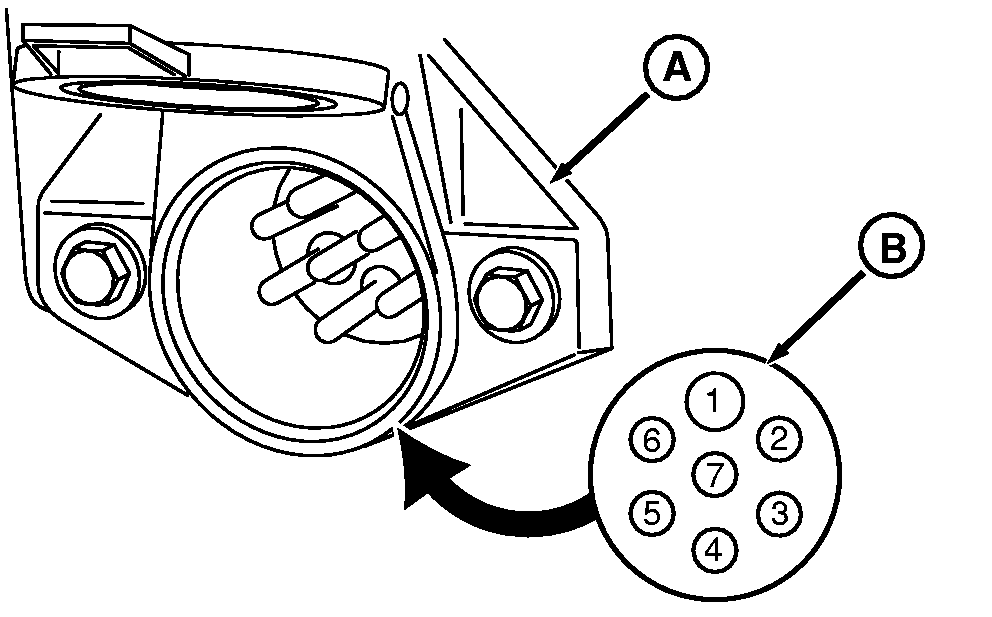

RXA0085739-UN-06JAN06

A - Seven-Terminal Outlet

B - Terminal Numbers

C - Seven-Terminal Outlet Bracket

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.

IMPORTANT: The seven-terminal outlet is mounted on above SCV stack for easy access.

NOTE: Matching plug is available through your John Deere™ Dealer.

Terminal Number (B)	Function
1	Ground
2	Flood Light
3	Left Turn Signal
4	Brake Lights
5	Right Turn Signal
6	Tail Light
7	Accessory
