Transporting on Carrier

RW13091-UN-07DEC88

Transport on Carrier Safely

RXA0117970-UN-13JUN11

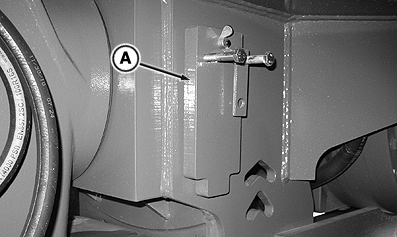

Left Side Stored Hinge Lock

RXA0117972-UN-13JUN11

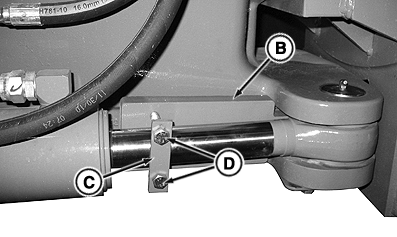

Installed Hinge Lock

RXA0117974-UN-13JUN11

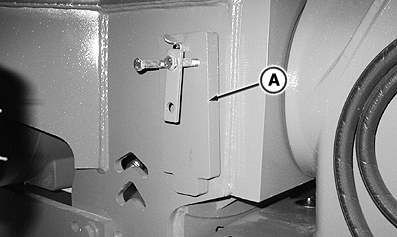

Right Side Stored Hinge Lock

RXA0117976-UN-13JUN11

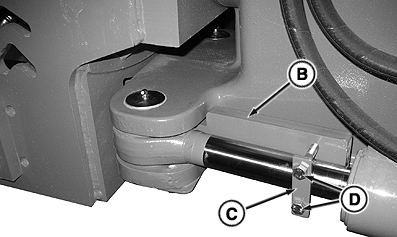

Installed Hinge Lock

A - Stored Hinge Lock

B - Hinge Lock

C - Cap Screws

D - Retaining Plate

The best method of transporting a disabled tractor is to haul it on a flatbed carrier.

CAUTION: Shift transmission lever into PARK, stop engine and remove key before working in hinge area.

IMPORTANT: Install hinge lock, originally equipped with tractor, on hinge cylinders before transporting tractor.

Steer tractor straight ahead, shift transmission lever into PARK and turn OFF engine.

Remove the left and right hinge locks (A) from tractor frame storage location.

Install lock (B) behind the cylinder and secure with retaining plate (C) and cap screws (D). Tighten cap screws to hold in place.

Chain tractor to carrier securely. Drive slowly.

IMPORTANT: Be sure hinge lock is removed from hinge area before operating tractor.

Remove hinge locks before unloading tractor.

Replace locks on tractor frame storage location as shown (A).

“T” Hook Locations

RXA0111046-UN-04OCT10

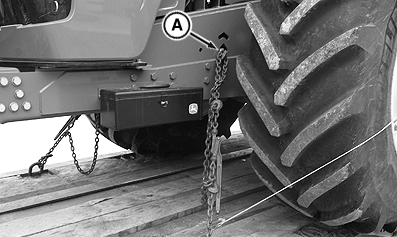

“T” Hook Slot-Left Side

RXA0111048-UN-04OCT10

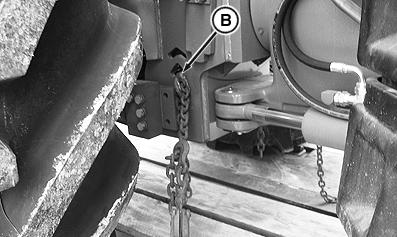

“T” Hook Slot-Rear Frame

RXA0111050-UN-04OCT10

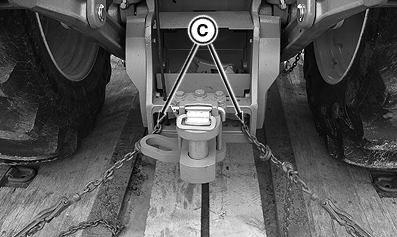

Drawbar Support

RXA0111052-UN-04OCT10

A - “T” Hook Slot-Left Side Frame

B - “T” Hook Slot- Rear Frame

C - Drawbar Support Tie Down

D - Side Mirror

E - Extremity Light

CAUTION: To avoid accident or injury, securely chain the tractor to carrier. Drive carefully.

IMPORTANT: Attach tie downs only to frame “T” hook slots and drawbar support when securing tractor on a carrier.

A disabled tractor should be hauled on a flat bed carrier.

1. Engage PARK position.
2. Attach chain using left and right side frame “T” hook slots (A) and tension chains forward and down to trailer frame.
3. Attach chain “T” hooks using left and right side frame “T” hook slots (B) and tension chains forward and down to trailer frame.
4. NOTE: Use a rubber or protective material to prevent paint damage to drawbar support.
   Attach chains to each side of rear drawbar support (C) to secure tractor to carrier.

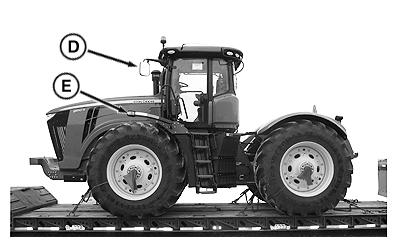

5. Adjust side mirrors (D) and extremity light (E).
6. After traveling a short distance, check load shift and tighten chains if needed.
