Changing Starting Fluid Canister

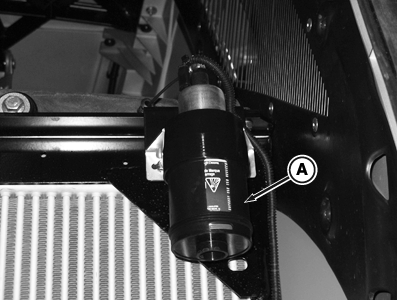

RXA0115916-UN-09MAY11

Starting Fluid Canister

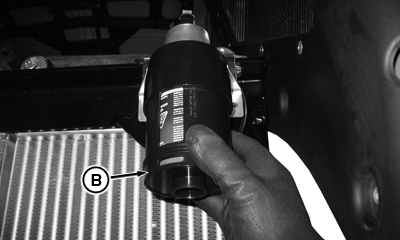

RXA0107805-UN-01JUN10

A - Starting Fluid Canister

B - Canister Holder

CAUTION: Do not use starting fluid near fire, sparks, or flames. Read the caution information on the container. Protect container against damage. Do not carry starting fluid cans inside cab.

Starting fluid canister (A) is located on left front oil cooler bracket.

Remove safety cap and plastic spray nozzle from new can.

Raise hood to access engine fluid canister.

Clean any dust or debris that may have accumulated around canister holder.

Loosen by turning canister holder (B) to remove old can. Make sure seal remains in canister and is not stuck on old can.

Install new can and tighten canister holder.

IMPORTANT: Avoid drawing dust into engine. Always keep a starting fluid can in position, or clean bottom of canister holder and install bottom side up.
