Using Engine Coolant Heater—13.5 L Engine (If Equipped)

RXA0112414-UN-10DEC10

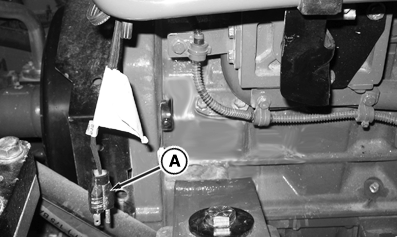

Right Side Of Engine

A - Engine Coolant Heater Plug

CAUTION: To avoid electrical shock or fire, use 3-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15-amp rating, suitable for outdoor use. Always plug electrical cord into an outlet protected by GFI (Ground Fault Interrupter).

Connect heater plug (A) located on right side of engine to a ground fault protected 110-volt electrical outlet.

Engine coolant heater is available from your John Deere Dealer:

• Engine Coolant Heater (1000 W) ¹

IMPORTANT: Ground fault interrupter on tractor protects tractor only, not electrical wiring supplying power to tractor. Test ground fault interrupter before each use.

NOTE: Extremely cold weather may require 1—2 hours to heat engine.
