Backup Alarm (If Equipped)

RXA0109274-UN-16AUG10

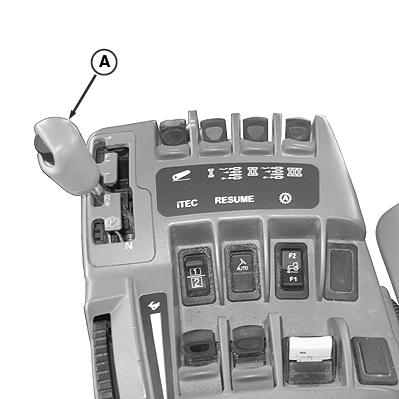

Powershift Transmission

RXA0118696-UN-08JUL11

Backup Alarm

RXA0094744-UN-27JUN07

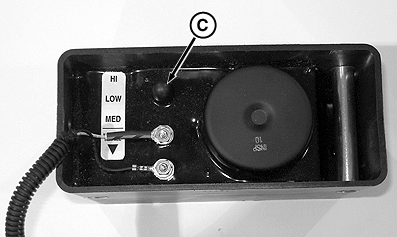

Volume Control-Rear View

A - Reverse Gear Lever

B - Backup Alarm

C - Volume Control

CAUTION: The backup alarm emits an audible sound to alert anyone near by; the tractor will be traveling in a reverse direction.

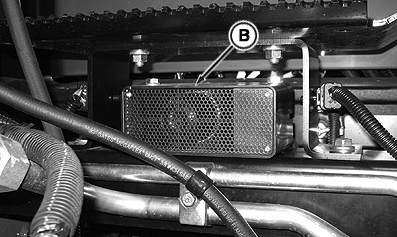

NOTE: The backup alarm (B) is located on the rear cross member.

Backup alarm will sound when key switch is ON and transmission is in reverse gear (A).

Alarm can be set at three different volume levels:

• high
• low
• medium

Set sound level switch (C) on back of alarm to desired setting.
