Filling Fuel Tank

CAUTION:

TS202-UN-23AUG88

RXA0112086-UN-10MAY11

RXA0112089-UN-16NOV10

RXA0112084-UN-12NOV10

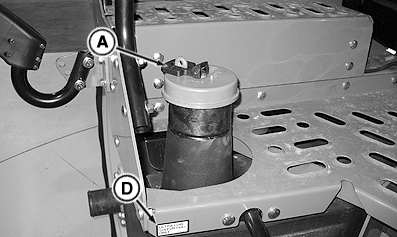

A - Fuel Cap Lock lever

B - Fuel Cap

C - Sight Tube

D - Ultra Low Sulfur Fuel Decal

• Always stop engine when refueling because fuel is highly flammable.
• Do not refuel while smoking or when near open flame or sparks.
• Handle fuel with care. Always clean up spilled fuel.
• Fill fuel tank outdoors.
• Prevent fires by keeping machine clean of accumulated trash, grease, and debris.

IMPORTANT: Use only ultra low sulfur fuel as prescribed by decal (D).

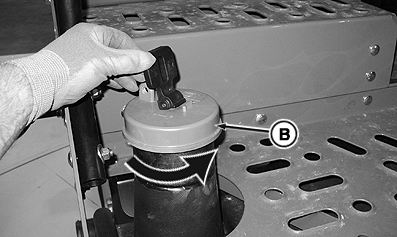

Raise fuel cap lock lever (A) and rotate counterclockwise.

Remove fuel cap (B) and fill fuel tanks at end of each day. Filling tanks at end of day prevents condensation in tanks as moist air cools.

NOTE: When digital display fuel gauge flashes, approximately 20 to 25 gallons of fuel remains.

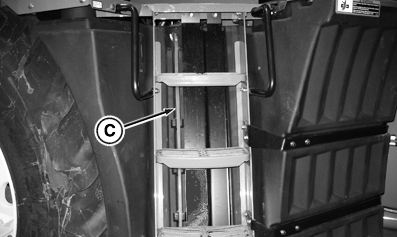

Approximately 132 L (35 gal) of fuel remains when the fuel level is at the bottom of sight tube (C).

IMPORTANT: Each fuel tank is vented through a hose with vented filter. See LUBRICATION AND MAINTENANCE—1500 HOUR SERVICE section.
