Replacing Transmission Oil Filter—18-Speed Powershift Transmission

RXA0113410-UN-24JAN11

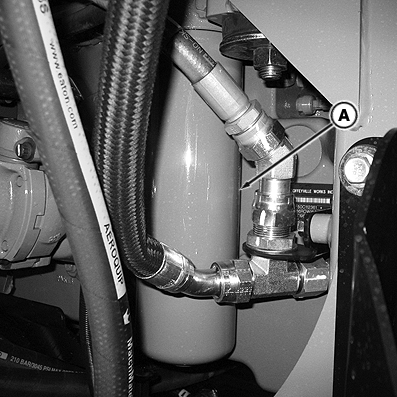

Transmission Oil Filter

A - Transmission Oil Filter

SERVICE INTERVAL —

INITIAL — 1500 HOURS

SCHEDULED — 1500 HOURS *

* Interval can vary according to operating conditions

NOTE: The powershift transmission only needs to be recalibrated if transmission shift characteristics change after oil and filter change. See Transmission Calibration procedure in this Section.

A drain pan is recommended for 1.9 L (2 qts) oil spilled when changing filter.

NOTE: Use a drip pan to catch any oil spilled when transmission oil filter is removed.

Remove transmission oil filter (A), located at right rear of the transmission.

Install new filter and tighten one-half turn after gasket contacts filter housing base.

Check transmission/hydraulic/axle oil level and fill as required using HY-GARD JDM J20C Oil ONLY.

See Checking Transmission-Hydraulic-Axle Oil Level in Lubrication and Maintenance-Daily or 10 Hour Service Section.
