Powershift Transmission/Axle and Hydraulic Oil

TS1651
TS1651-UN-14MAR96

IMPORTANT: To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C specifications must be used.

Shift quality problems and/or drivetrain damage may occur if the HY-GARD or JDM J20C specifications are not followed.

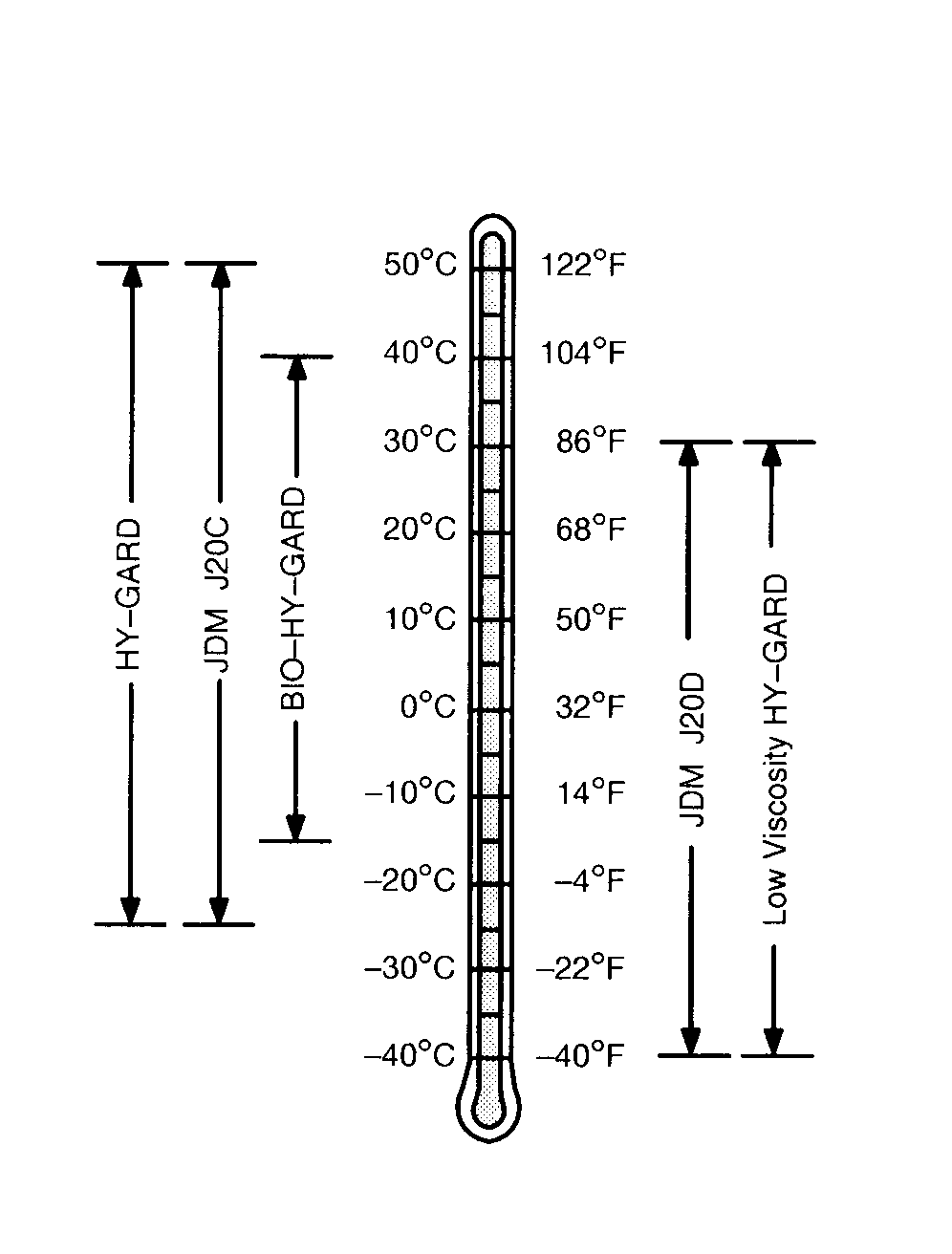

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere HY-GARD®
  • John Deere Low Viscosity *HY-GARD®

    * Not for use with 18-Speed Powershift Transmission.

Other oils may be used if they meet one of the following:

  • John Deere Standard JDM J20C
  • John Deere Standard JDM J20D *

    * Not for use with 18-Speed Powershift Transmission.

Use John Deere BIO-HY-GARD™ oil when a biodegradable fluid is required.1

HY-GARD is a trademark of Deere & Company.
BIO-HY-GARD is a trademark of Deere & Company
1 BIO-HY-GARD meets or exceeds the minimum biodegradability of 80% within 21 days according to CEC-L-33-T-82 test method. BIO-HY-GARD should not be mixed with mineral oils, because this reduces the biodegradability and makes proper oil recycling impossible.

RW29387,000050F-19-20100202
