Replacing Axle Filter—9510R and 9560R Tractors Only

RXA0114899-UN-11MAY11

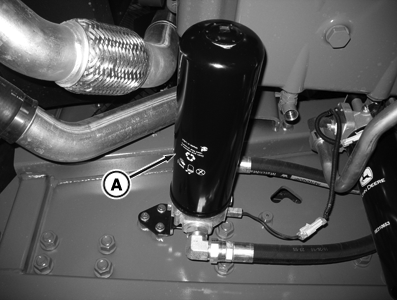

Axle Oil Filter

A - Axle Oil Filter

SERVICE INTERVAL —

INITIAL — 1500 HOURS

SCHEDULED — 1500 HOURS *

* Interval can vary according to operating conditions

1. NOTE: Use a drip pan to catch any oil spilled when axle oil filter is removed.

   Replace axle filter (A), located under engine, at scheduled service interval or if indicator light comes on.

2. Install new filter and tighten one half turn after seal contacts filter housing base.

3. Check transmission/hydraulic/axle reservoir oil level and fill as required.

   See Checking Transmission-Hydraulic-Axle Oil Level in Lubrication and Maintenance-Daily or 10 Hour Service Section.
