Replacing Cab Fresh Air Filters and Recirculation Filters

Recirculation Filter

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals. * Interval may vary according to operating conditions.

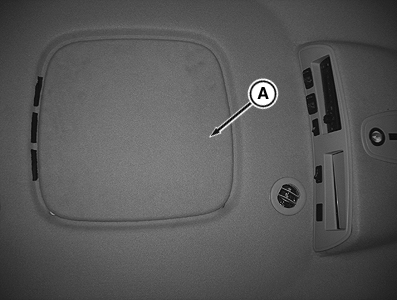

RXA0099070-UN-18SEP08

Remove Roof Upholstery

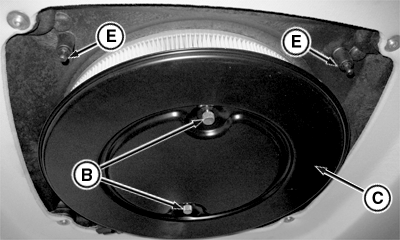

RXA0108468-UN-13JUL10

Remove Cover

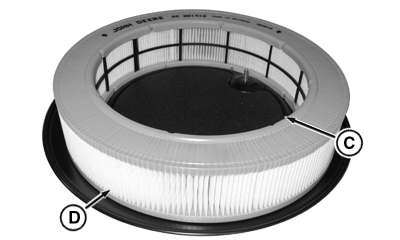

RXA0108470-UN-09JUL10

Remove Filter

A - Upholstery Cover

B - Fasteners

C - Cover

D - Filter

E - Ball Stud

SERVICE INTERVAL — 1000 HOURS, ANNUALLY, OR AS REQUIRED, WHICHEVER COMES FIRST *

* Interval may vary according to operating conditions.

1. Close entry door to prevent debris getting into the cab.

2. Remove upholstery cover (A) in the headliner by grabbing outer edges and pulling down.

   NOTE: When removing fasteners (B), hold cover (C) in place with one hand.

3. Remove fasteners allowing cover to be lowered.

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before installing new filter.

4. Remove and inspect condition of filter.

5. Replace filter (D) annually or when plugged or damaged.

6. Re-Install cover (C).

7. Reinstall cover panel by lining up ball studs (E) with clip nuts (not shown) and pushing up.

Cab Fresh Air Filter

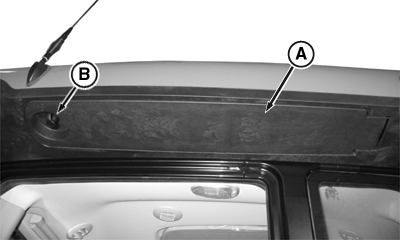

RXA0108464-UN-09JUL10

Let Cover Swing By Turning Knob

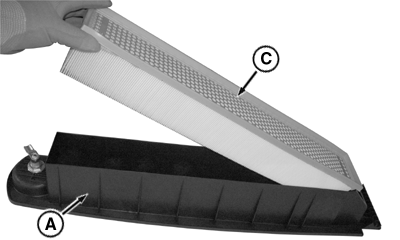

RXA0108466-UN-09JUL10

Remove Filter

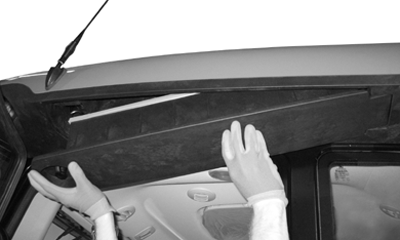

RXA0108472-UN-09JUL10

A - Cover

B - Knob

C - Filter

1. Support cover then turn knob (B) allowing cover (A) to swing down.

2. Remove old filter (C).

3. Inspect condition of filter (C).

4. Replace filter annually or sooner when plugged or damaged.

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before replacing old filter or installing new filter.

5. If required, Install new filter.

6. Close cover and turn knob 180° so that latch is locked.
