Adjusting Steering Wheel and Column

RXA0102163
RXA0102163-UN-21APR09

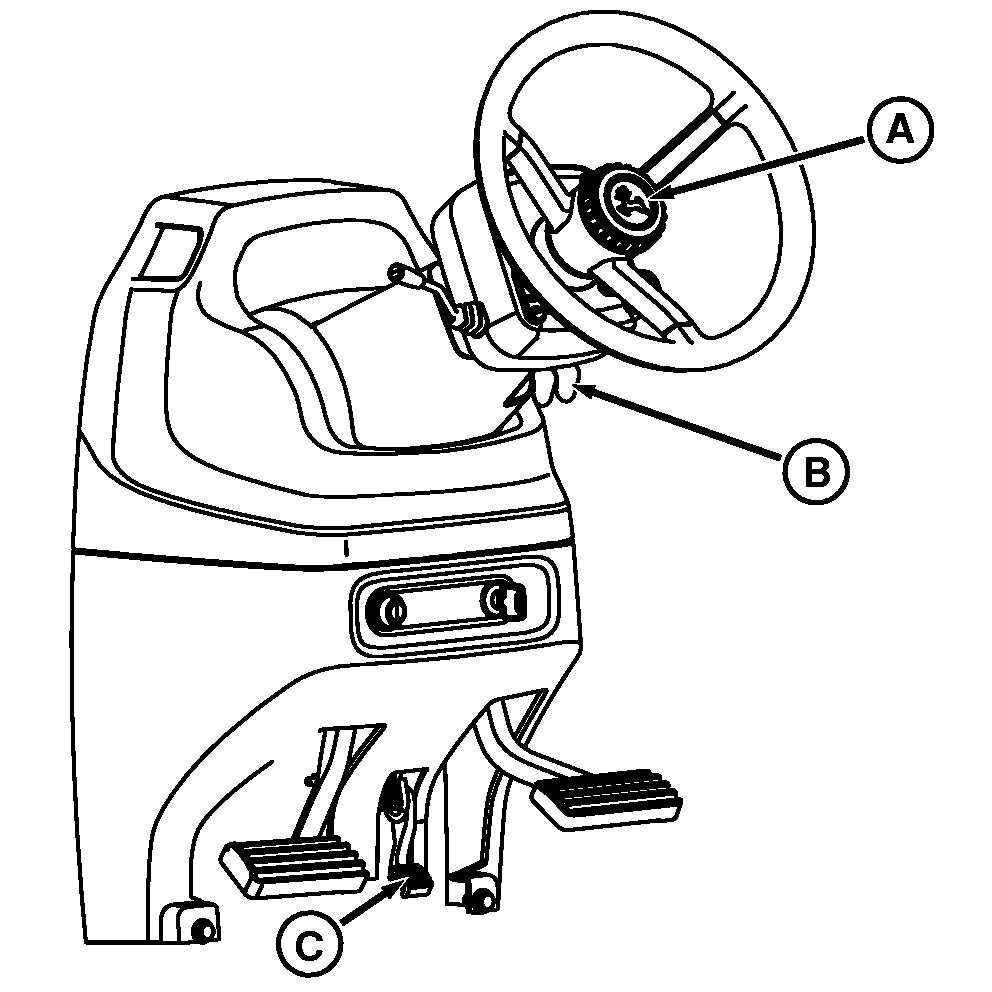

Adjusting Steering Wheel and Column

A - Telescoping Knob

B - Tilt Lever

C - Column Pedal

Telescope: Rotate telescoping knob (A) counterclockwise to extend or retract steering wheel. Rotate knob clockwise to lock.

Tilt: Pull up on tilt lever (B) and move steering column to desired position. Release lever to lock.

Memory: Push down on column pedal (C) to permit steering column to automatically move up and out of the way for easy entry or exit.

Push down on foot pedal and pull down on steering wheel to return steering column to previous setting.

RW29387,0000554-19-20100804
