Using Implement Connector

RXA0073943-UN-12MAR04

RXA0073947-UN-12MAR04

RXA0073945-UN-12MAR04

A - Lever

B - Latch

C - Implement Connector

D - Lever

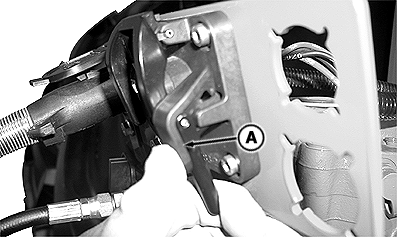

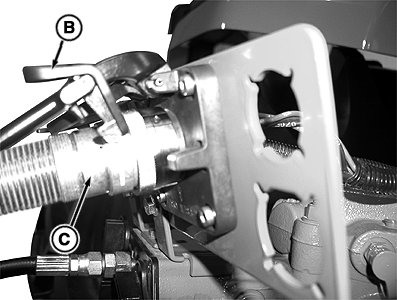

Push release lever (A), open connector and insert implement connector (C). Connector latch (B) will be in raised position.

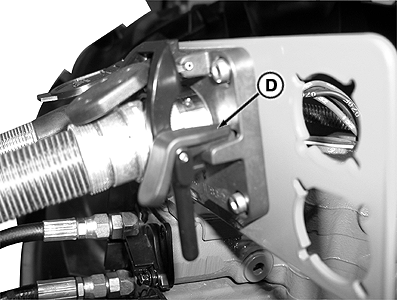

Lower latch until lever (D) is in latched position. This will prevent implement harness from being pulled out of connector.
