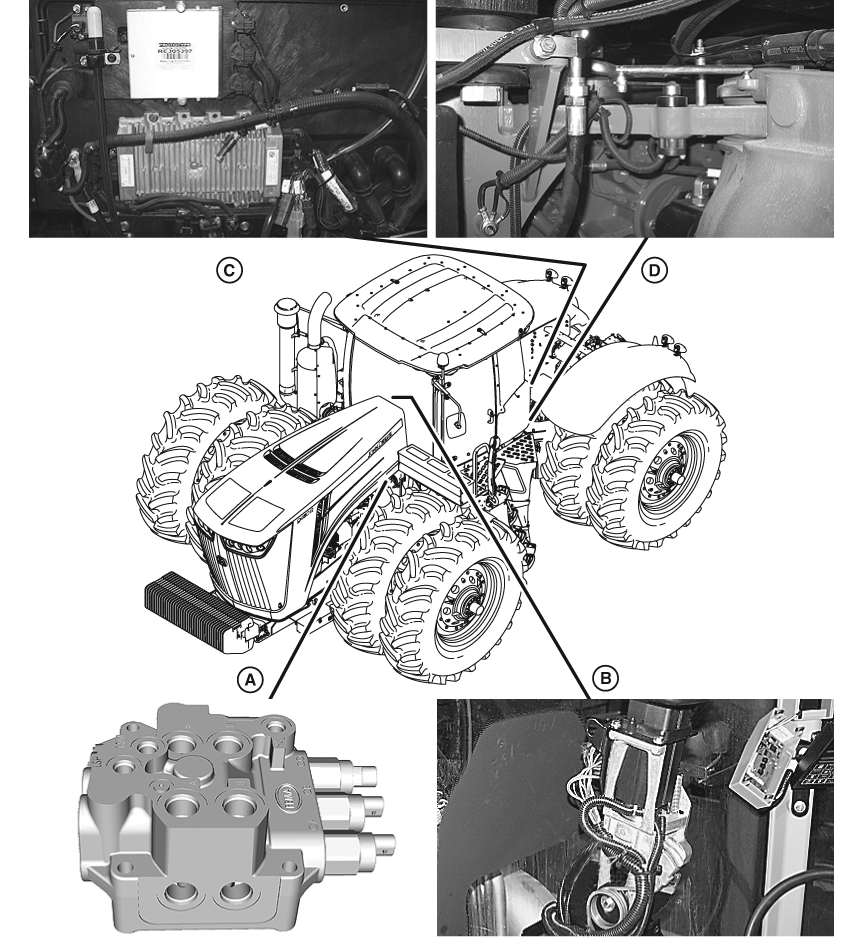

AutoTrac™ System Component Location

AutoTrac™ is approved for agricultural and scraper applications.

RXA0111082-UN-04MAR11

A - Electro-Hydraulic Steering Control Unit (EH Valve)

B - Upper Steering Column With Steering Wheel Position Sensor

C - Steering Control Unit Flexbox And Wiring Harness

D - Position Sensor
