AutoTrac™ Steering System

RXA0109998-UN-20AUG10

Starfire™ Receiver

RXA0110000-UN-20AUG10

GreenStar™ Display 2630

RXA0100708-UN-26FEB09

GreenStar™ Display 1800

RXA0084306-UN-26SEP05

GreenStar™ 2600 Display

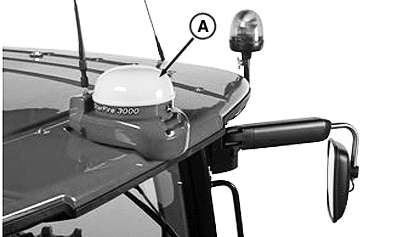

A - Starfire™ Receiver

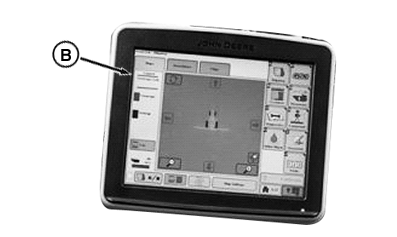

B - GreenStar™ Display 2630

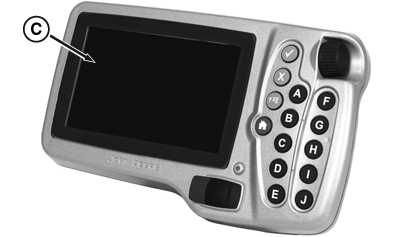

C - GreenStar™ Display 1800

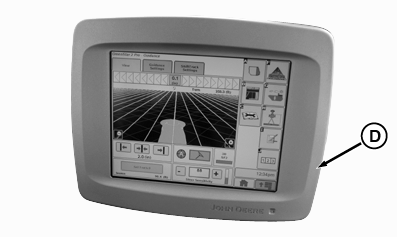

D - GreenStar™ Display 2600

NOTE: Electrohydraulic steering is required for AutoTrac™ to function.

Refer to AutoTrac™ Operator's Manual for detailed instructions.

Refer to Maintenance and Service Interval Section for daily lubrication for hinge and steering cylinder pins.

• AutoTrac™ system utilizes StarFire™ position receiver (A) and GreenStar™ display¹ (B), (C) or (D) to assist operator in steering tractor.
• AutoTrac™ steers the vehicle on operator-defined paths through the field. Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.
