Standard Hydraulic Component Identification

RXA0112002-UN-18NOV10

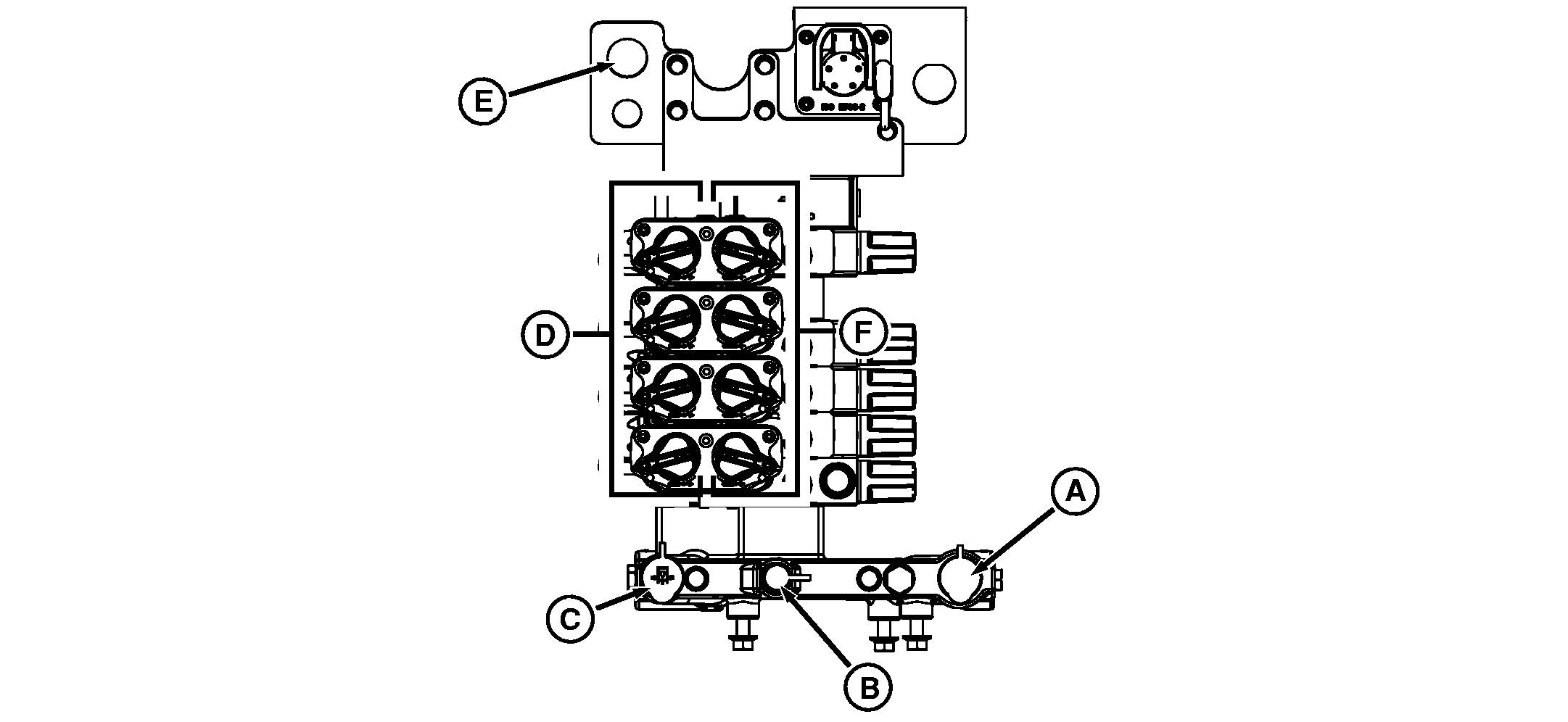

Standard Hydraulic Component Identification

A - Power-Beyond Return Port

B - Power-Beyond Load Sense Coupler

C - Power-Beyond Pressure Port

D - Extend Ports

E - Motor Seal Drain Port

F - Retract Ports

NOTE: SCV covers are color coded for easy identification.

SCV Color Codes
