Implement Connection Example 3—Closed Center Valve, Pump at High Pressure—Less Hitch—High Flow Hydraulics

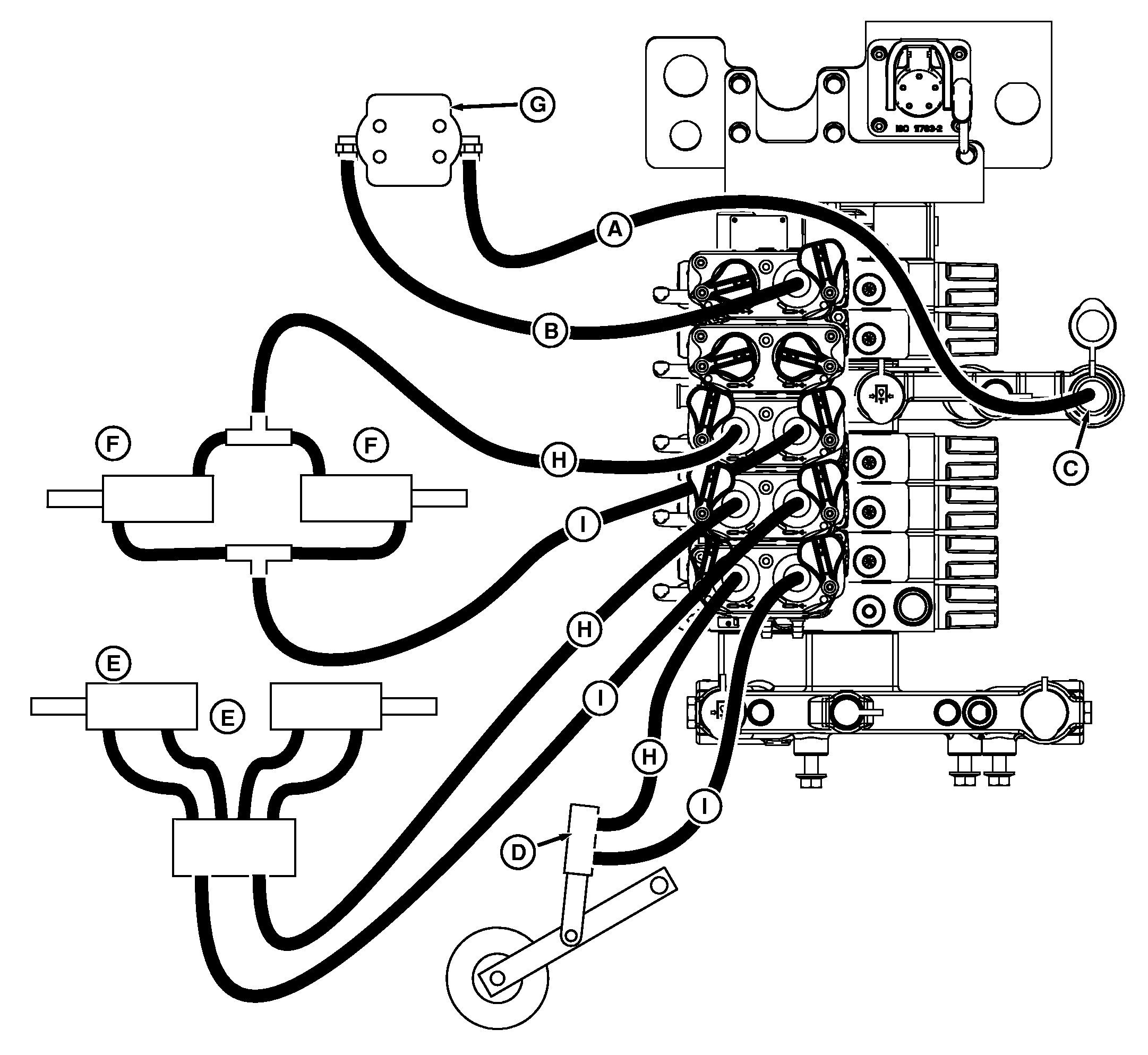

RXA0112000-UN-18NOV10

A - Return Line

B - Pressure Line

C - Power Beyond Return coupler

D - Raise/Lower cylinder

E - Markers

F - Fold

G - Hydraulic Motor

H - Extend Coupler Line

I - Retract Coupler Line

In this application hydraulic motor (G) receives pressure oil from the retract port of SCV. Return oil is routed to power beyond return port. If return hose is equipped with special return hose tip, it can be connected directly to left-hand side of coupler. When the motor is shut off, the SCV lever is moved to float position to allow motor to coast to a stop. Moving lever to neutral will cause motor to stop abruptly and may damage seals.
