Checking Weep Hole—13.5 L Engine

1. Raise hood.


   RXA0108491-UN-12JUL10

   Engine Right-Hand Side Panel


   RXA0105550-UN-13JAN10

   Water Pump

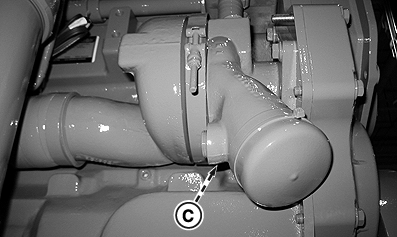

   RXA0105528-UN-13JAN10

   Weep Hole Location


   RXA0105530-UN-13JAN10

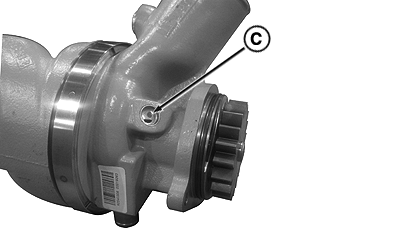

   Water Pump-On Bench For Better View

   A - Side Panel

   B - Screws

   C - Weep Hole

   D - Mirror

---




2. Remove screws (B) and right-hand side panel (A).

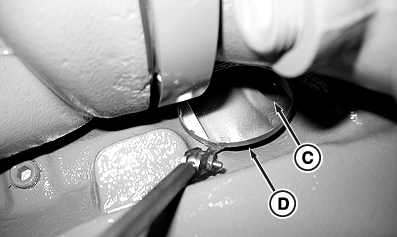

3. NOTE: Use a mirror (D) to locate the weep hole.

   Locate weep hole (C) on under side of water pump and inspect for oil or coolant leakage.

   • Oil leakage indicates a damaged rear seal.
   • Coolant leakage indicates a damaged front seal.



   If leakage is detected, see your John Deere dealer to replace complete coolant pump assembly (repair parts are not available).

4. Replace engine side panel and tighten screws.

5. Close hood.
