Record Engine Serial Number

RXA0114927-UN-11MAY11

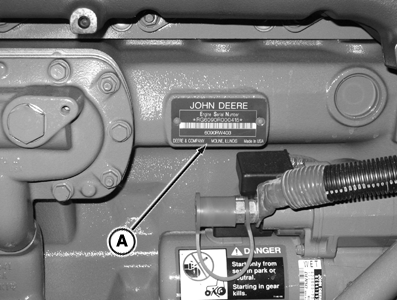

9.0 L Engine Serial Number Plate Location

RXA0114932-UN-11MAY11

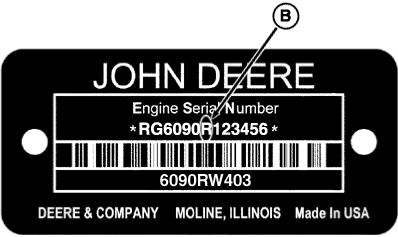

9.0 L Engine Serial Number Plate

RXA0112244-UN-10DEC10

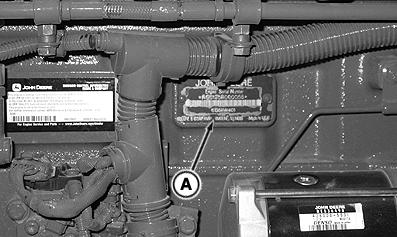

13.5 L Engine Serial Number Plate Location

RXA0126637-UN-04JUN12

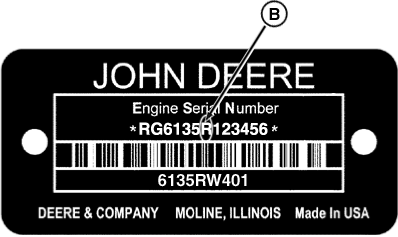

13.5 L Engine Serial Number Plate

A - Engine Serial Number Plate Location

B - Engine Emissions Tier Level Code

Identification plate (A) is located on left side of engine, near starter.

Serial Number
*–––––––––––––––––––––––––––––––––––––––––––––––––––––*

Engine emission tier level is identified by seventh character (B) of the engine serial number.

Emission Tier Level	Seventh Character of Engine Serial Number
U.S. EPS Interim Tier 4 and EU Stage III B	R
U.S. EPA Tier II and EU Stage II	G
