Clean Hydraulic Oil System Vent Filter

RXA0113422
RXA0113422-UN-25JAN11

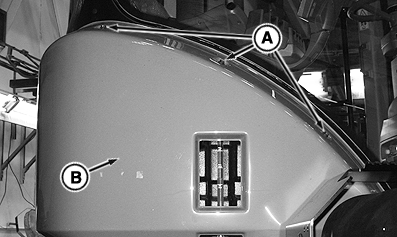

Right-Hand Cab Side Panel

RXA0116113
RXA0116113-UN-10MAY11

A - Retaining Screws

B - Side Panel

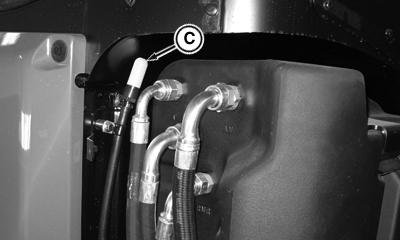

C - Vent Filter

SERVICE INTERVAL — 1500 HOURS *



* Interval can vary according to operating conditions

NOTE: Hydraulic oil system vent filter is located under the right-hand cab side panel.

  1. Remove right-hand cab side panel retaining screws (A).

  2. Remove cab panel (B).

  3. Loosen hose clamp to remove vent filter (C) from hose.

  4. Clean vent filter in soapy detergent water solution.

  5. Gently blow dry with compressed air.

  6. Attach vent filter to hose and tighten hose clamp.

  7. Reinstall side cab panel and tighten retaining screws.
