Checking Engine Oil Level - 9410R-9460R-9510R-9560R Tractors

RXA0108977-UN-29JUL10

RXA0108979-UN-29JUL10

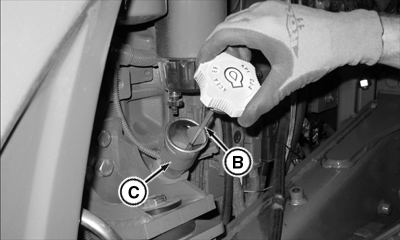

Engine Oil Dipstick

RXA0106512-UN-10DEC10

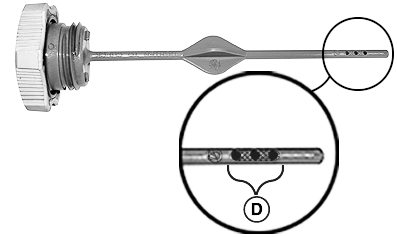

Dipstick Cross Hatch

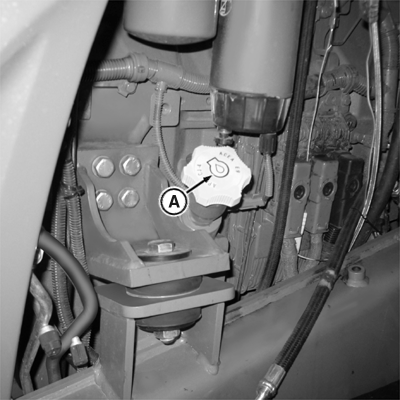

A - Fill Cap

B - Dipstick

C - Fill Tube

D - Cross-Hatch Area

SERVICE INTERVAL — DAILY OR 10 HOURS

Remove fill cap (A) and check oil level with tractor on level ground before starting tractor. Oil level should be between the “ADD” and the top of the cross-hatch area on dipstick (B).

NOTE: Cross-hatch area (D) is considered FULL.

Engine oil level indicator is a dipstick with a "crosshatch" area with a "safe" zone. After tractor has been parked on level ground overnight is best time to check oil level. Anywhere in the dipstick crosshatch safe zone is considered full.

Remove fill cap (A) and add oil in to fill tube (C), if oil is required. (See DIESEL ENGINE OIL in the Fuels, Lubricants and Coolant Section.)

Do not operate engine with oil level below the “ADD” mark on dipstick.
