Lubricating Hinge Pins—Standard Gudgeon

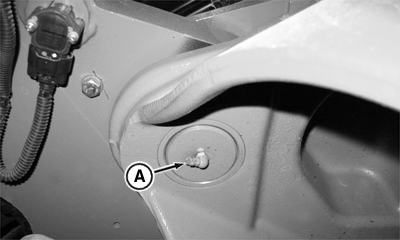

RXA0115629-UN-10MAY11

Upper Gudgeon Hinge Pin

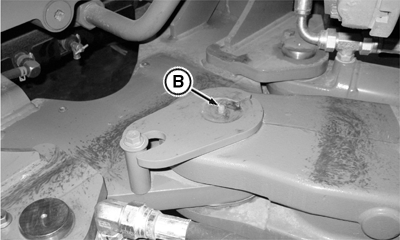

RXA0115631-UN-10MAY11

Lower Gudgeon Hinge Pin

A - Upper Hinge Pin

B - Lower Hinge Pin

SERVICE INTERVAL — 50 HOURS

CAUTION: Stop engine and remove key before working in hinge area.

NOTE: Hinge pin lubrication points are the same for both standard and heavy duty gudgeon.

Lubricate upper (A) and lower hinge pins (B) with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.
