Lubricating Steering Pin Bushings (If Equipped)

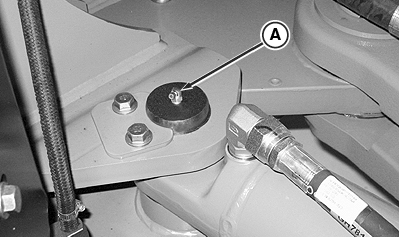

RXA0108420-UN-03AUG10

Left Front Steering Pin

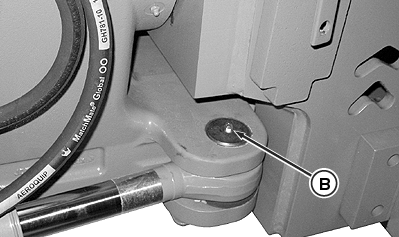

RXA0108422-UN-03AUG10

Left Rear Steering Pin

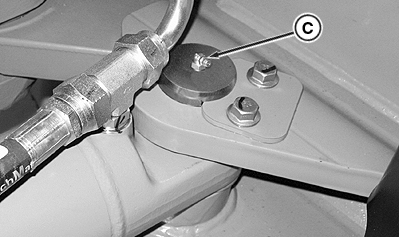

RXA0108424-UN-03AUG10

Right Front Steering Pin

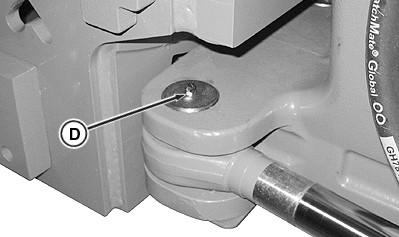

RXA0108426-UN-03AUG10

Right Rear Steering Pin

A - Left Front Pin

B - Left Rear Pin

C - Right Front Pin

D - Right Rear Pin

SERVICE INTERVAL — 50 HOURS

CAUTION: Stop engine and remove key before working in hinge area.

Lubricate left front (A) and rear (B), right front (C) and rear (D) steering pin bushings with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.
