Checking Neutral Start System

RXA0109316-UN-09AUG10

RXA0109313-UN-09AUG10

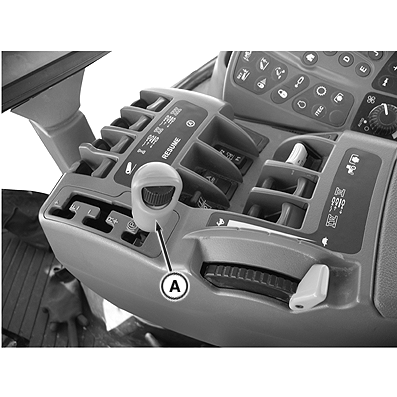

A - Gear Shift Lever

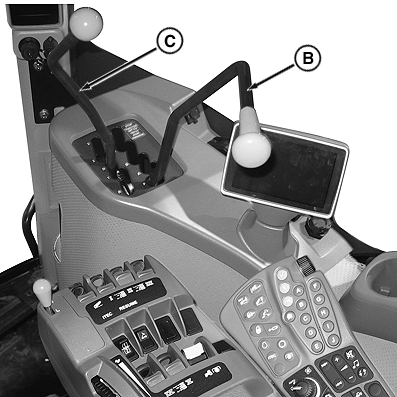

B - Range Selector Lever

C - Gear Selector Lever

18-Speed Powershift Transmission

SERVICE INTERVAL — 250 HOURS

PARK tractor on level ground.

Fully depress clutch and brake pedals. Move gear shift lever (A) from PARK position to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately. Repeat this step with transmission in a reverse gear.

24-Speed POWRSYNC Transmission

PARK tractor on level ground.

Fully depress clutch and brake pedals. Move range selector lever (B) into A-range and the gear selector lever (C) into 1 forward (24-Speed POWRSYNC). Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately. Repeat this step with transmission in a reverse gear.
