Lubricating Telescoping Drive Shafts—24-Speed POWRSYNC Transmission Only

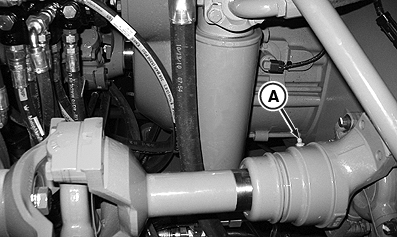

RXA0113208-UN-17JAN11

Transmission to Front Axle Drive Shaft

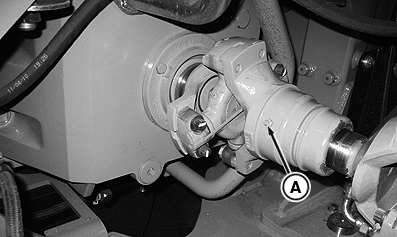

RXA0113212-UN-25JAN11

Transmission to Gudgeon Drive Shaft

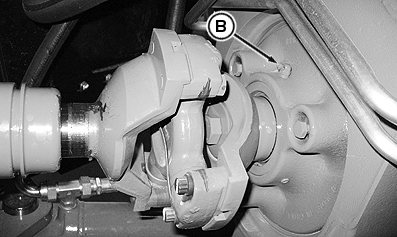

RXA0113214-UN-17JAN11

Rear Gudgeon Driveshaft Bearing

A - Transmission to Front Axle Drive Shaft and Gudgeon Drive Shaft Fittings

B - Rear Drive Shaft Gudgeon Bearing Fitting

SERVICE INTERVAL — 250 HOURS

Lubricate telescoping transmission to front axle drive shaft fitting (A).

Lubricate telescoping transmission to gudgeon drive shaft bearing fitting (A).

Lubricate transmission rear drive shaft gudgeon bearing fitting (B).
