Lubricating PTO Drive Shaft

RXA0114276
RXA0114276-UN-11MAY11

PTO Shaft

RXA0114273
RXA0114273-UN-11MAY11

PTO Drive Shaft Shield

RXA0114271
RXA0114271-UN-11MAY11

Rear PTO Shaft Fitting-Parts Removed

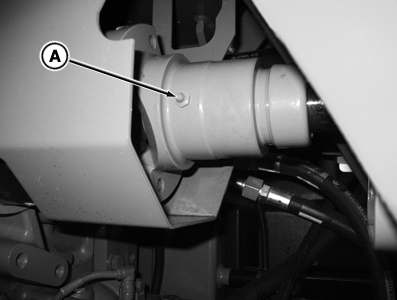

A - Front Shaft Fitting

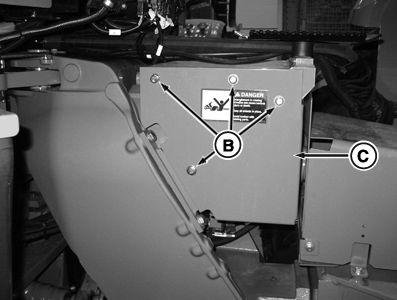

B - Cap Screws

C - Rear Drive Shaft Shield

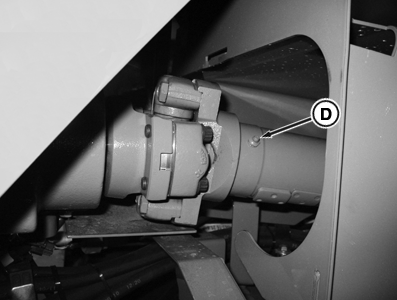

D - Rear PTO Shaft Fitting

SERVICE INTERVAL — 250 HOURS

NOTE: Rotate PTO shaft so fittings can be easily accessed for lubrication.

Use John Deere SD POLYUREA GREASE is preferred or grease as specified in Fuels, Lubricants and Coolant Section.

  1. Lubricate front shaft fitting (A) located between transmission and PTO clutch.

  2. Remove four cap screws (B) and remove PTO shield (C) for access to rear shaft lubrication fitting.

  3. Lubricate rear PTO shaft fitting (D) located after the PTO clutch.

  4. Reinstall PTO drive shaft shield with cap screws and tighten cap to specification.

ItemMeasurementSpecification
Drive Shaft Shield Cap Screws Torque28 N·m (20 lb-ft)
